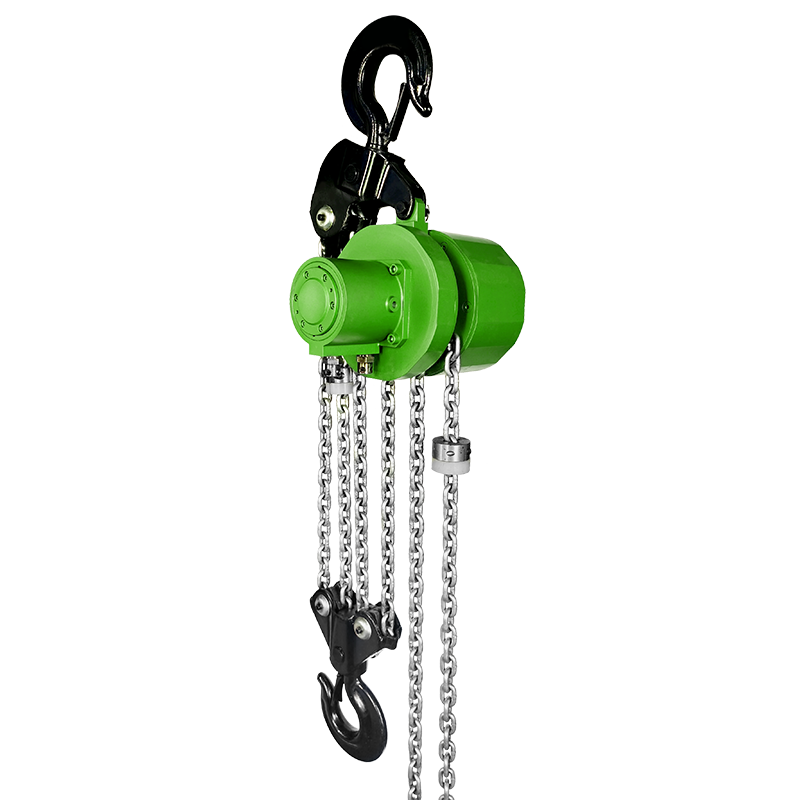

LH61-001 Emulsion Hoist

Used for lifting heavy loads and handling hoisting operations in flammable and explosive environments; widely applied in mining, petroleum, chemical, coal, textile, machinery manufacturing, shipbuilding, and military industries.

Features

Emulsified fluid medium is flame-retardant, offering enhanced explosion protection
Equipped with an adjustable flow valve for stepless speed control
Modular integrated structure design
Internal components are rust-resistant and durable

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Max. load	Lifting height	Working pressure	Max. working pressure	Working medium	Flow rate	Lifting speed	Lowering speed	Meas.	Weight
Model	T	m	Mpa	Mpa		l/min	m/min	m/min	cm	kg
LH61-001	1	3m 0-20m can be customized	20	31.5	Hydraulic oil/ Emulsion	40	1.1	2.5	553525.5	40
LH61-002	2					40	1.1	2.7	603525.5	45
LH61-003	3					40	1.1	0.8	653525.5	50
LH61-005	5					40	1.1	1.25	704226.5	60
LH61-010	10					80	0.7	1	1004226.5	80
LH61-015	15					120	0.5	1	1104240	160
LH61-020	20					120	0.35	1.1	1104240	180
LH61-025	25					120	0.35	0.9	1104240	220
LH61-032	32					150	0.4	0.9	1404245	280
LH61-050	50					150	0.25	0.5	1404245	350
