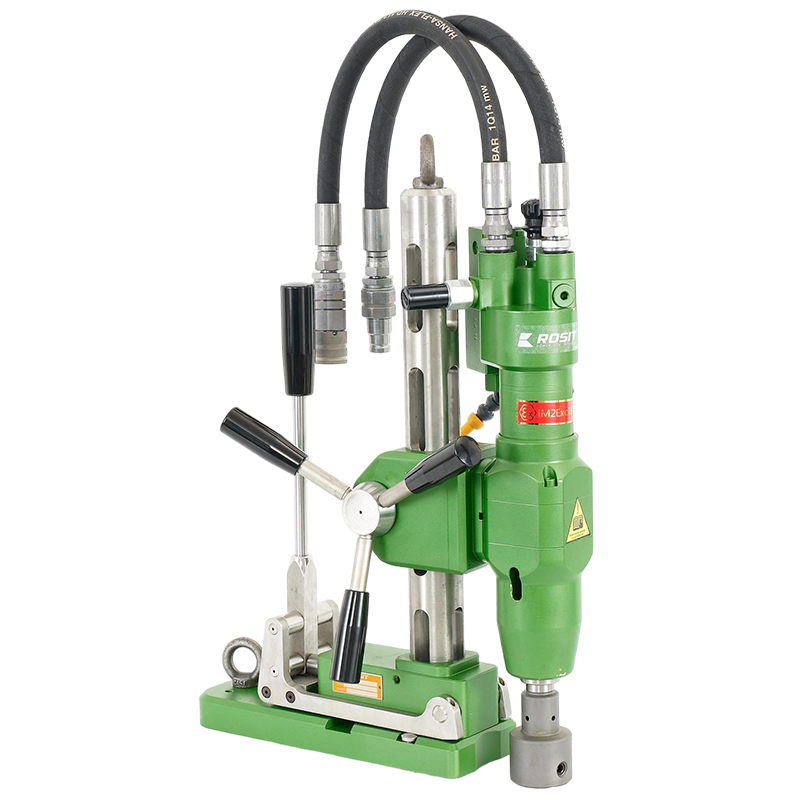

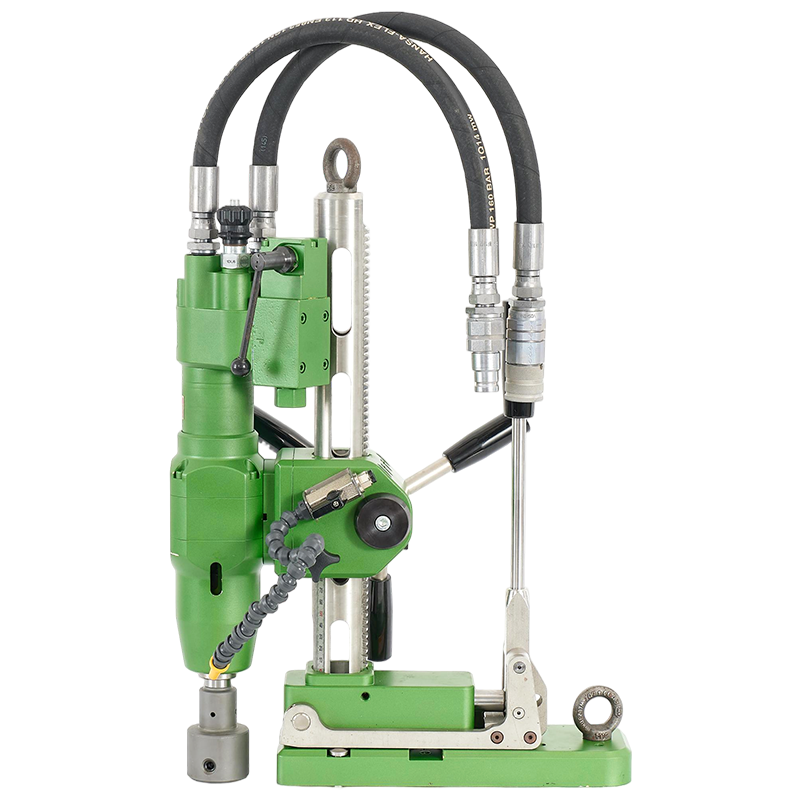

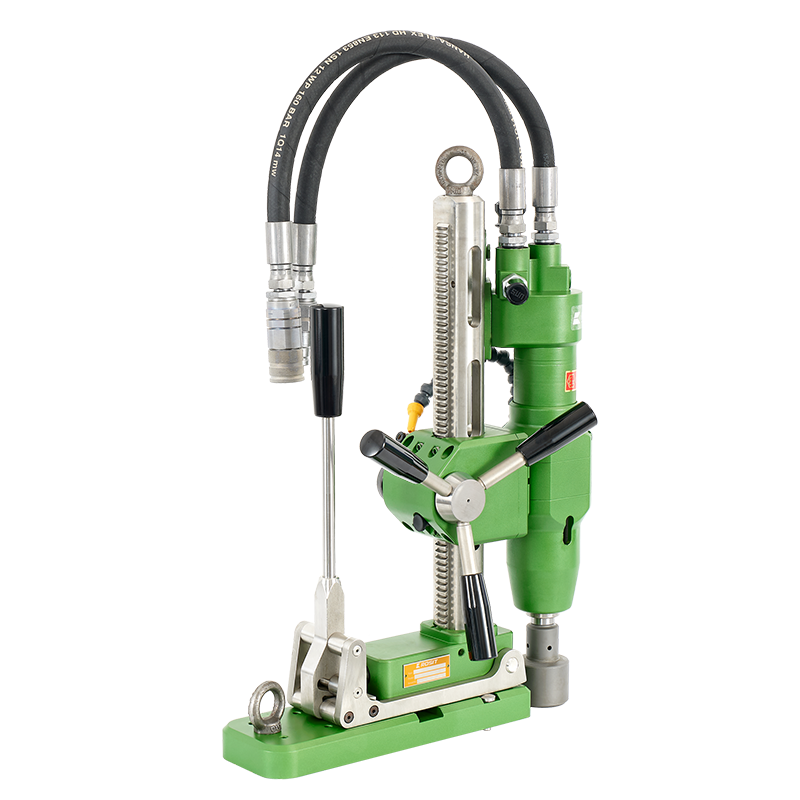

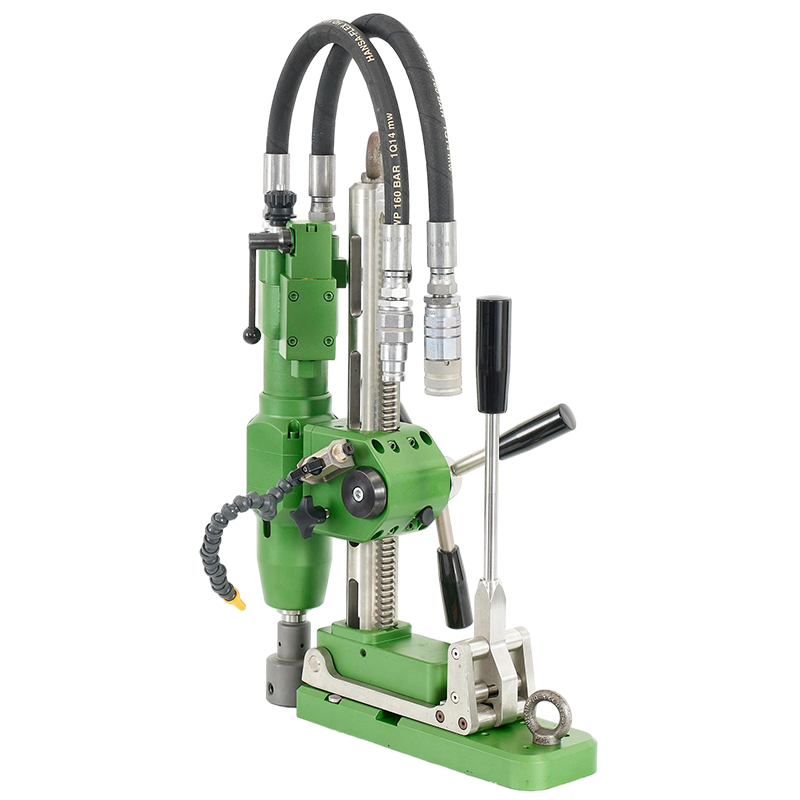

DM31-035 Hydraulic Magnetic Drill

Used for drilling, bolt removal, and core extraction on steel surfaces in industries such as oil drilling, mining, shipbuilding, and chemicals.

Features

Independent base switch design prevents air disconnection and detachment
Hydraulic motor with high explosion-proof performance
Can be operated by a single person
Equipped with a water cooling system
Stainless steel body with strong corrosion resistance
Stepless speed regulation

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Max. Hollow drill dia.	Max. spiral drill dia.	Max. drilling depth	Flow rate	Power	Mag. force	Stroke	Noise level	Vibration level	Weight
Model	mm	mm	mm	l/min	kW	N	mm	dB(A)	m/s²	kg
DM31-013	45	13	45	10-25	1.0	6000	120	﹤60	﹤4	20
DM31-016	50	16	50	10-25	1.2	6500	120	﹤65	﹤5	22
DM31-030	55	30	55	10-25	1.5	7500	120	﹤70	﹤5	24
DM31-035	120	35	60	10-25	2.5	10000	300	﹤80	﹤5	26
