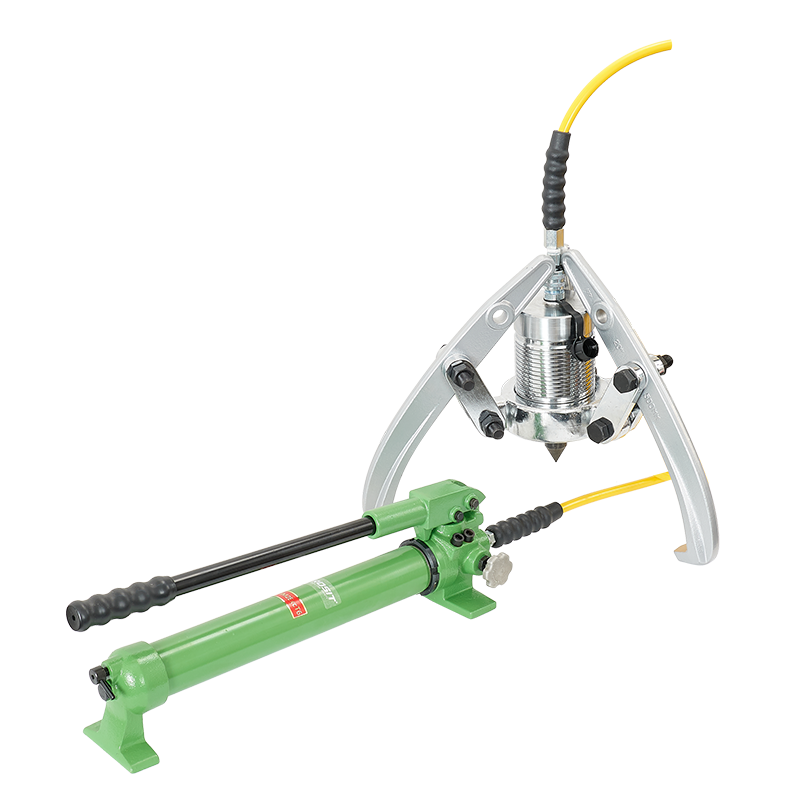

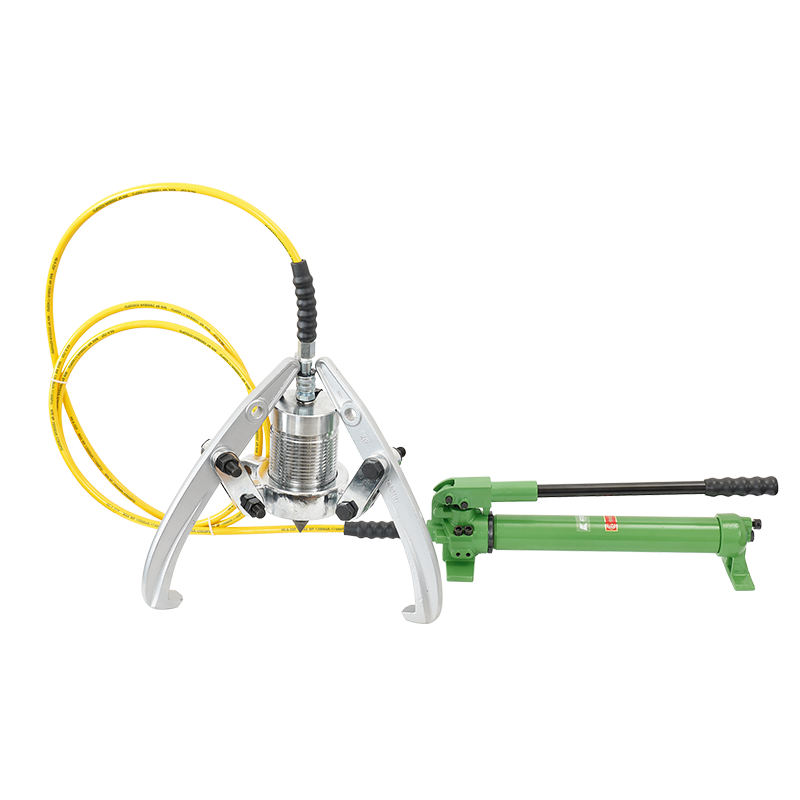

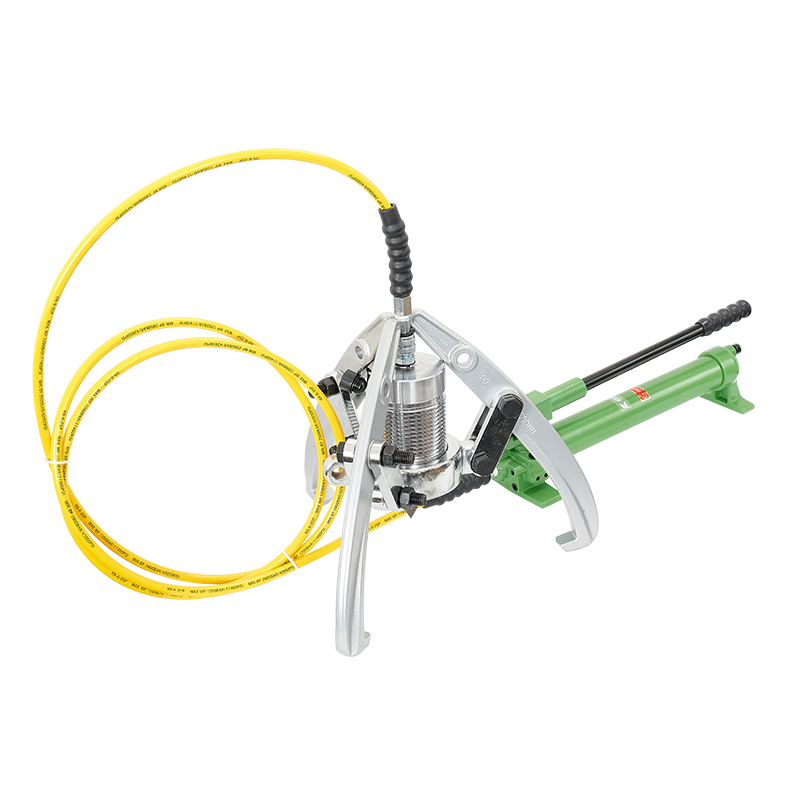

AL72-020 Hydraulic Puller

Used in power, steel, petrochemical, mining, and railway industries for removing pulleys, gears, bearings, and other circular components.

Features

Claws forged from high-strength alloy steel for durability
360° swivel connector for precise centering
Equipped with pressure gauge for accurate pressure control
Available in mechanical or hydraulic versions, matched with pumps based on tonnage
Wide tonnage range, interchangeable 2-jaw and 3-jaw configurations
Built-in safety valve to prevent damage and ensure long-lasting safety

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

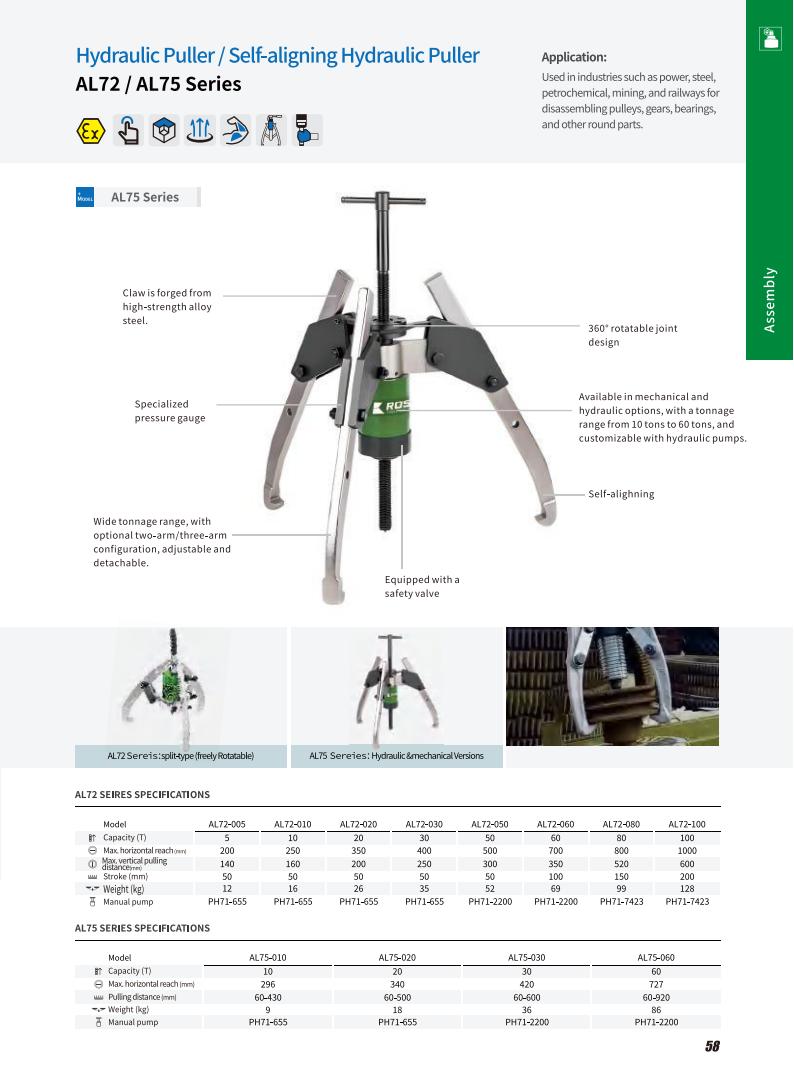

Model	Capacity	Max. lateral reach	Max. vertical reach	Stroke	Weight	Matched manual pump
Model	T	mm	mm	mm	kg
AL72-005	5	200	140	50	12	PH71-655
AL72-010	10	250	160	50	16	PH71-655
AL72-020	20	350	200	50	26	PH71-655
AL72-030	30	400	250	50	35	PH71-655
AL72-050	50	500	300	50	52	PH71-2200
AL72-060	60	700	350	100	69	PH71-2200
AL72-080	80	800	520	150	99	PH71-7423
AL72-100	100	1000	600	200	128	PH71-7423
