Home> Products> Drilling Tools> Angle Drill

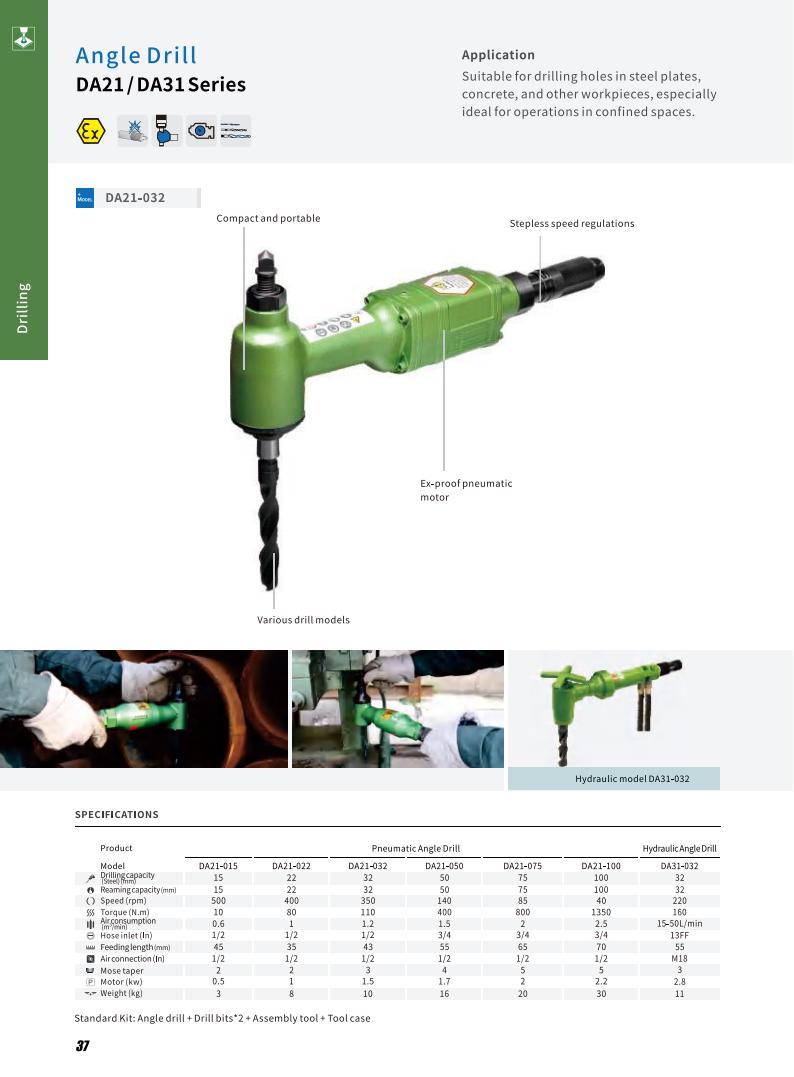

DA21-075 Pneumatic Angle Drill

Suitable for drilling holes in steel plates, concrete, and other work pieces, especially in confined spaces.

Features

High explosion-proof performance of the pneumatic motor
Stepless speed control
Portable design, suitable for tight spaces
Multiple drill bits available for selection

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Drilling capacity	Reaming capacity	Motor output	Load speed	Torque	Air consumption	Air inlet	Hose inlet	Feeding length	Morse taper	Weight
Model	mm	mm	kW	rpm	N.m	m³/min	In	In	mm		kg
DA21-015	15	15	0.5	500	10	0.6	1/2	1/2	45	2	7.0
DA21-022	22	22	1.0	400	80	1.0	1/2	1/2	35	2	7.5
DA21-032	32	32	1.5	350	110	1.2	1/2	1/2	43	3	8.0
DA21-050	50	50	1.7	140	400	1.5	1/2	3/4	55	4	13
DA21-075	75	75	2.0	85	800	2.0	1/2	3/4	65	4	14
DA21-100	100	100	2.2	40	1350	2.5	1/2	3/4	70	5	15
