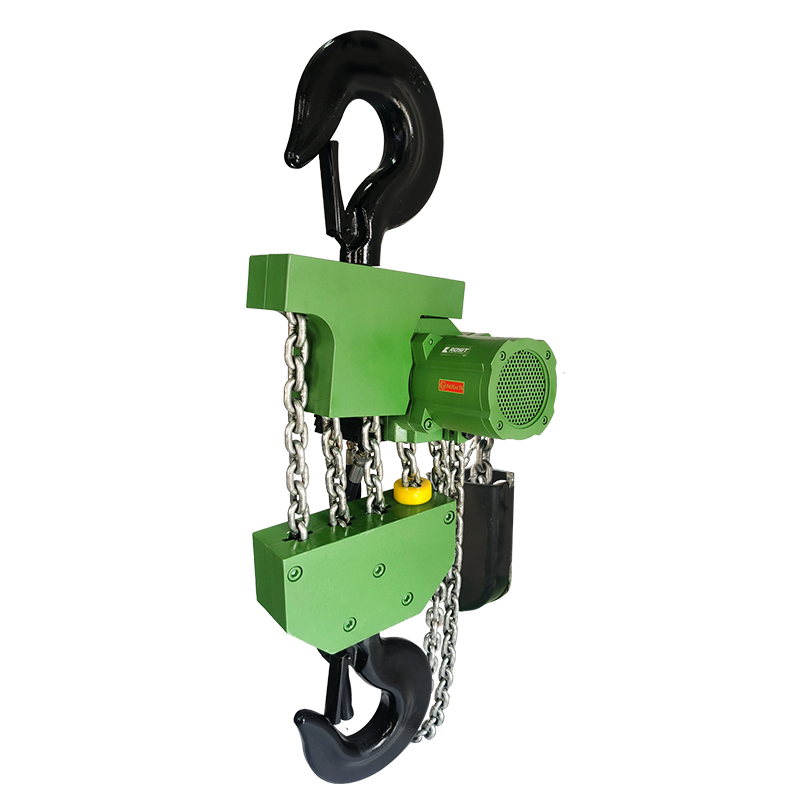

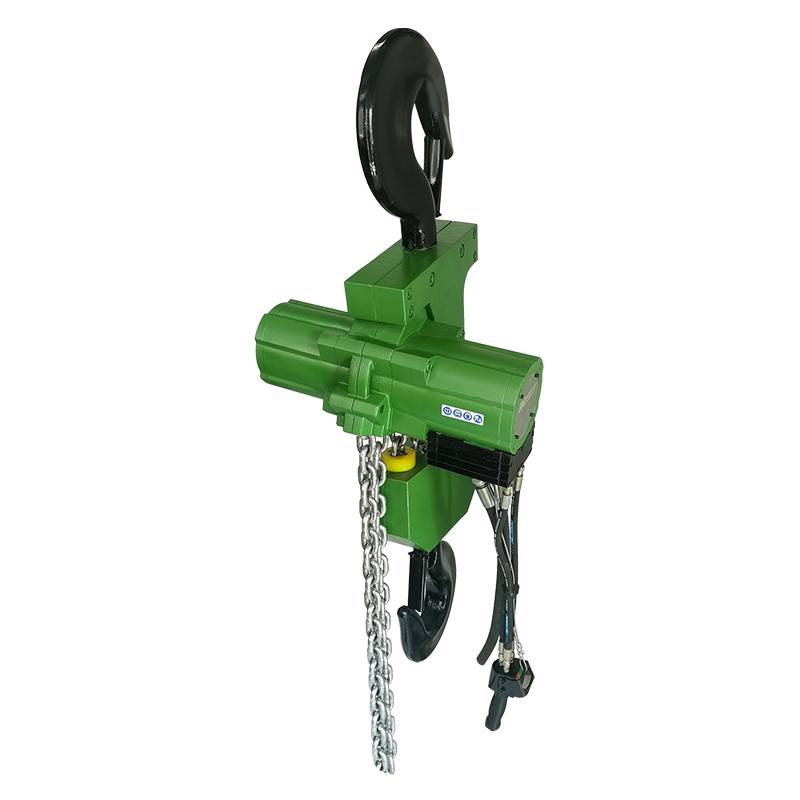

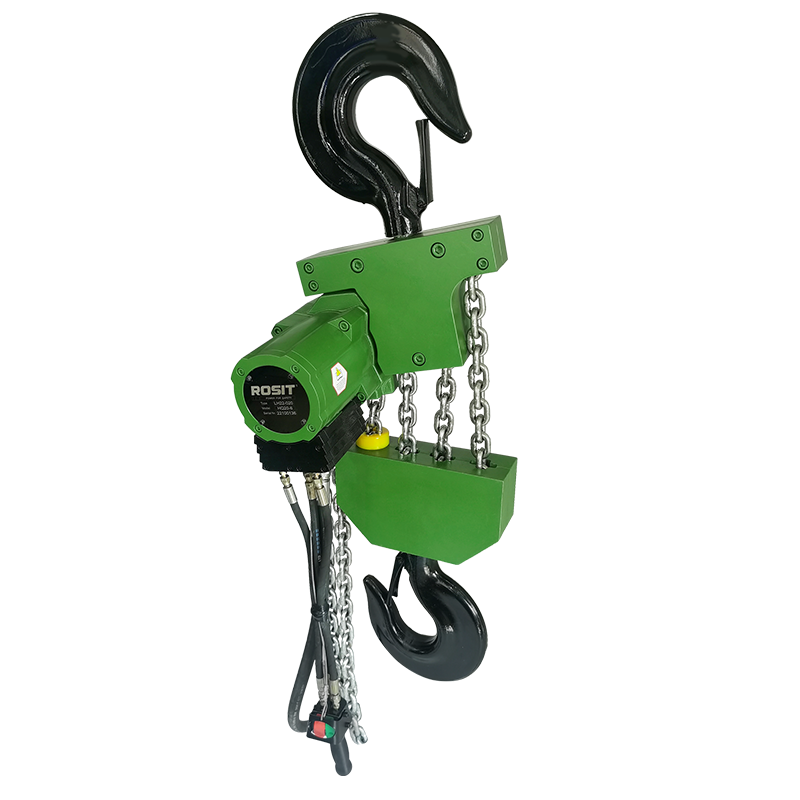

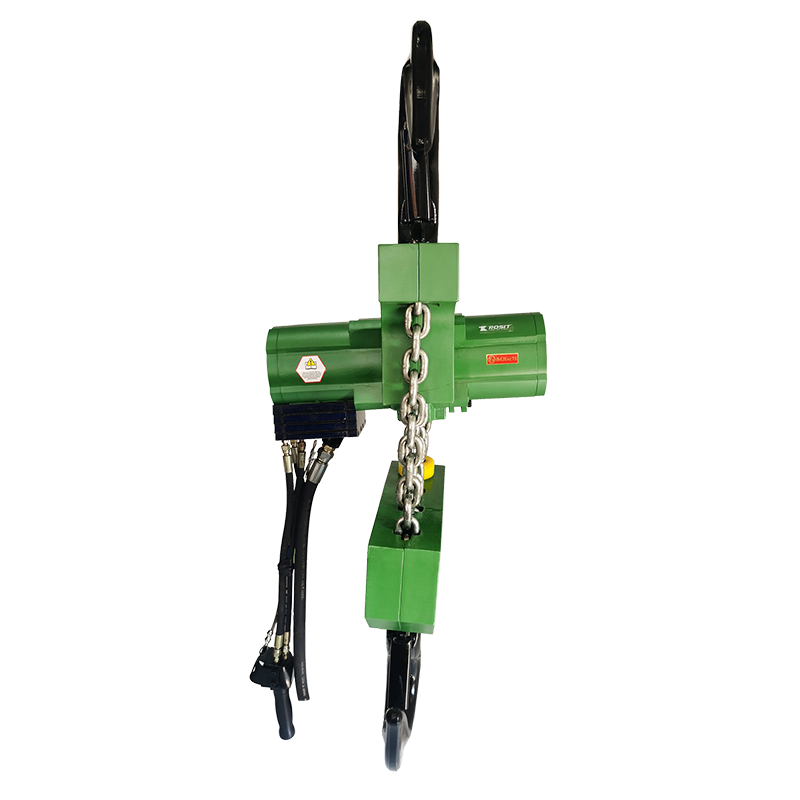

LH22-020 Gear Type Pneumatic Chain Hoist

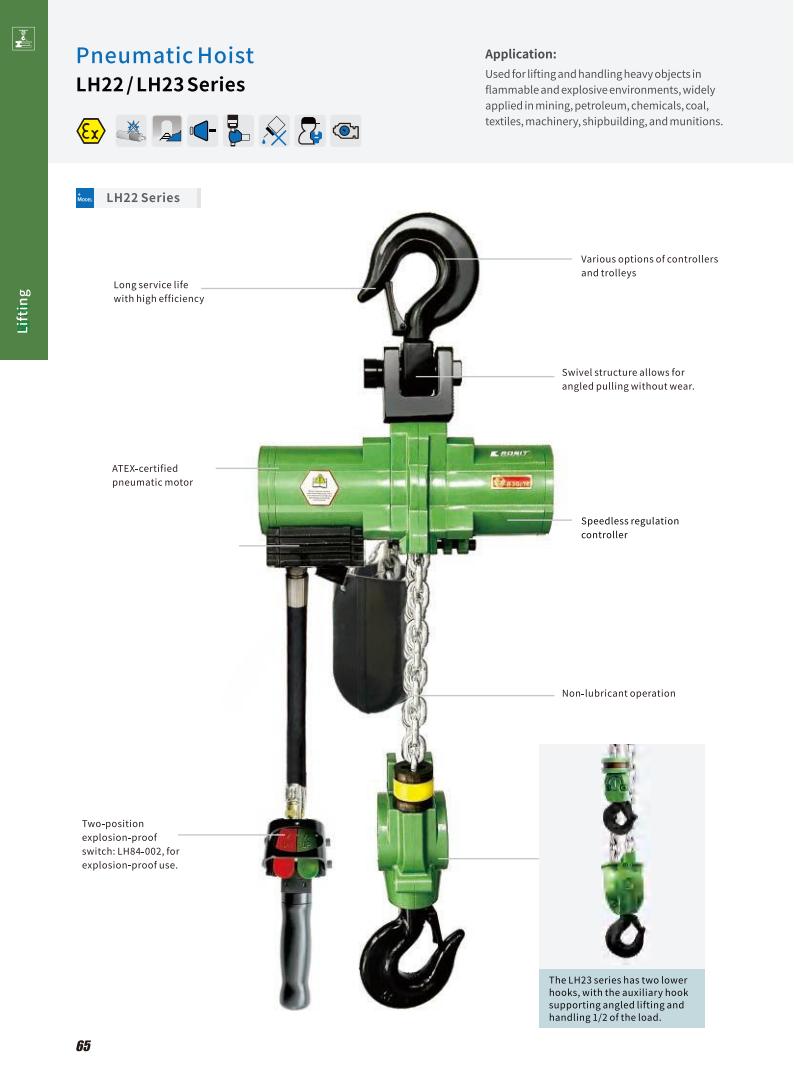

Used for lifting heavy loads and handling hoisting operations in flammable and explosive environments; widely applied in mining, petroleum, chemical, coal, textile, machinery manufacturing, shipbuilding, and military industries.

Features

  • Pneumatic motor suitable for flammable and explosive environments
  • High transmission efficiency and smooth operation
  • Long service life with high-frequency operation capability
  • Compatible with various types of controllers and trolleys
  • Hook features a swivel design allowing angled pulling without wear
  • Stepless speed control
  • Low maintenance cost, suitable for oil-free operation

REQUEST A QUOTE REQUEST A DEMO

Product Information

  • MODEL SPECIFICATION
  • DOWNLOADS
  • Accessories
COMPARE MODELS
Compare

Model

Working pressure

Working load

Max. load

Chain fall(s)

Power

Lifting height

Full load lifting speed

No load lifting speed

Full load lowering speed

Full load air Cons.-lifting

Full load air Cons.-lowering

Std. weight

Height of 3m

Romote control length

Air inlet

Hose inlet (ID)

Mpa

T

T


kW

m

m/min

m/min

m/min

m³/min

m³/min

kg

m

In

mm

LH22-001

0.4/0.6

1

1.3

2

0.6/1





3-20m

Std. 6m

5/5.5

9/10

9/10

0.9/1.2

1.1/1.5

62







3-6m

Std. 6m

1/2

16

LH22-002

0.4/0.6

2

2.65

2

1.5/3

4/5.3

6/10

7.5/11

2/3

3/4

63

3/4

19

LH22-003

0.4/0.6

3

4

2

1.5/3

2.5/5

6/10

7.5/11

2.2/3.5

3/4

74

3/4

19

LH22-005

0.4/0.6

5

7

2

1.8/3.5

1.2/2.3

3/5

3.5/5.5

2/4

4/5

80

3/4

19

LH22-006

0.4/0.6

6

8

2

1.8/3.5

1.2/2.3

3/5

3.5/5.5

2/4

4/5

97

3/4

19

LH22-010

0.4/0.6

10

13

2

1.8/3.5

0.7/1.5

2/3

2.5/3.5

2/4

3.5/5.5

142

1

25

LH22-016

0.4/0.6

16

18

3

2/4

0.5/1

1.2/2

1.5/2

2/4

3.5/5.5

199

1

25

LH22-020

0.4/0.6

20

26

4

2/4

0.3/0.5

1/1.5

1.2/1.5

2/4

3.5/5.5

286

1

25
