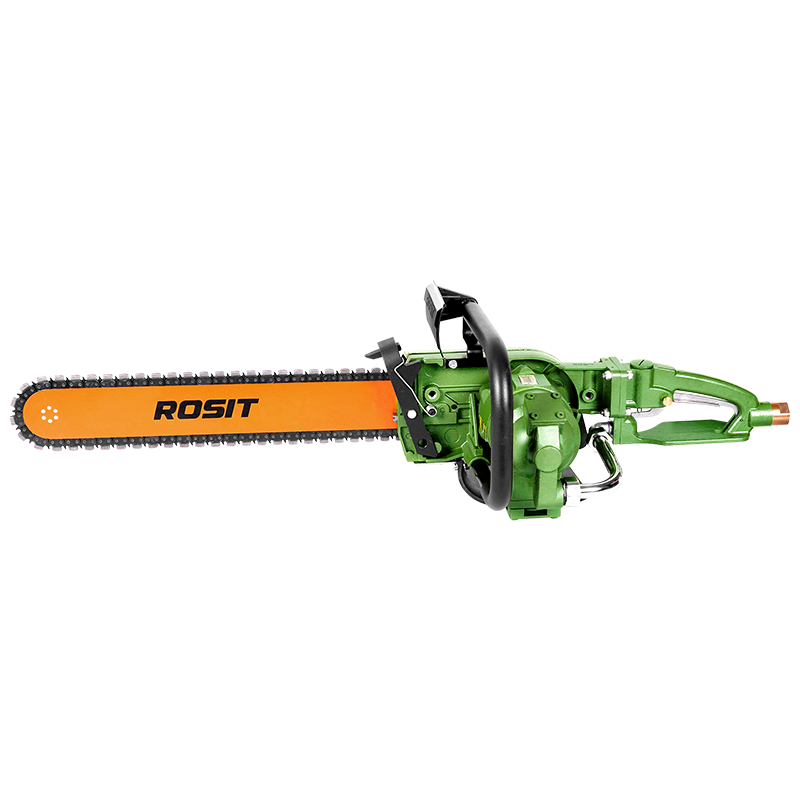

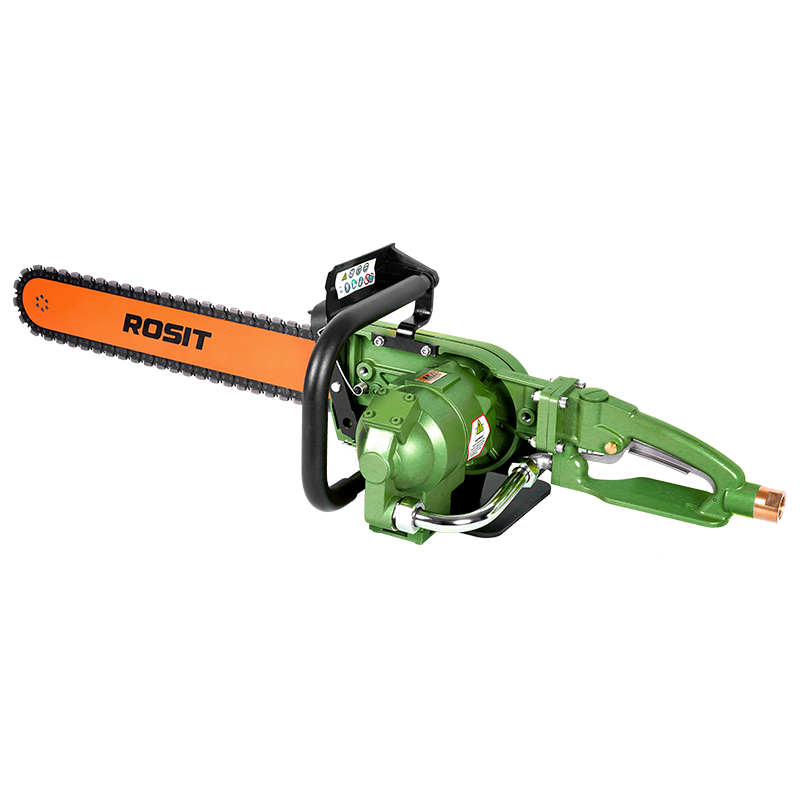

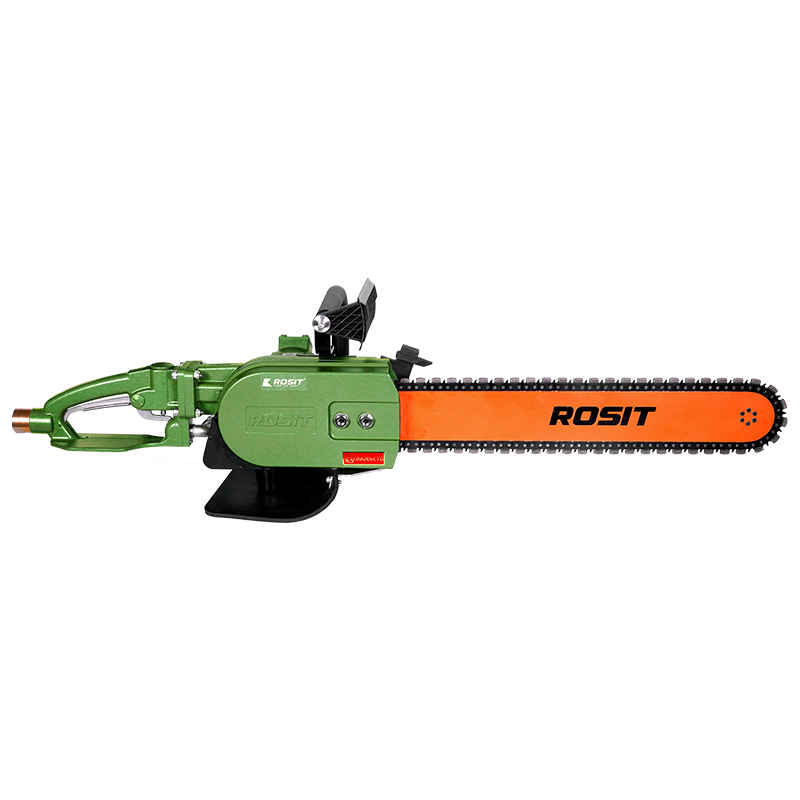

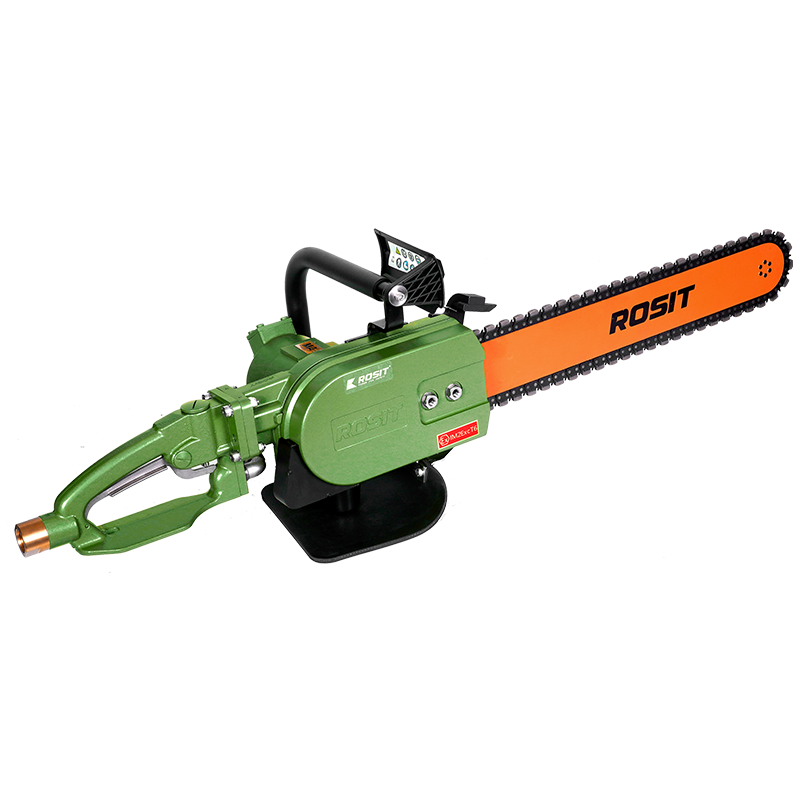

CD22-380 Pneumatic Concrete Chainsaw(5.0KW)

Ideal for cutting materials such as reinforced concrete, rock, coal blocks, walls, floors, columns, and concrete pipes

Features

Shield, protective cover, and dual switch ensure safe operation
The 5.0 kW pneumatic motor offers powerful performance and exceptional efficiency
Explosion-proof pneumatic motor operates spark-free and is safe for hazardous environments
Wet cutting provides effective lubrication and cooling of the work surface
Specially designed diamond chain with long service life
Saw chains available in lengths from 250 mm to 630 mm

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Cutting depth	Power	Working pressure	Air consumption Under 6 mpa	Working water pressure	Motor speed	Noise level	Vibration level	Weight	Deluxe kit
Model	mm	kW	Mpa	m³/min	Mpa	rpm	dB(A)	m²/s	kg
CD22-250	250	5.0	0.5-0.8	3.5	0.2-0.6	5800	﹤105	﹤4	13.5	CD22-250K
CD22-380	380	5.0	0.5-0.8	3.5	0.2-0.6	5800	﹤105	﹤4	14	CD22-380K
CD22-500	500	5.0	0.5-0.8	3.5	0.2-0.6	5800	﹤105	﹤4	14.5	CD22-500K
CD22-630	630	5.0	0.5-0.8	3.5	0.2-0.6	5800	﹤105	﹤4	15	CD22-630K
