Home> Products> Lifting and Fluid Tools> Axial Fan

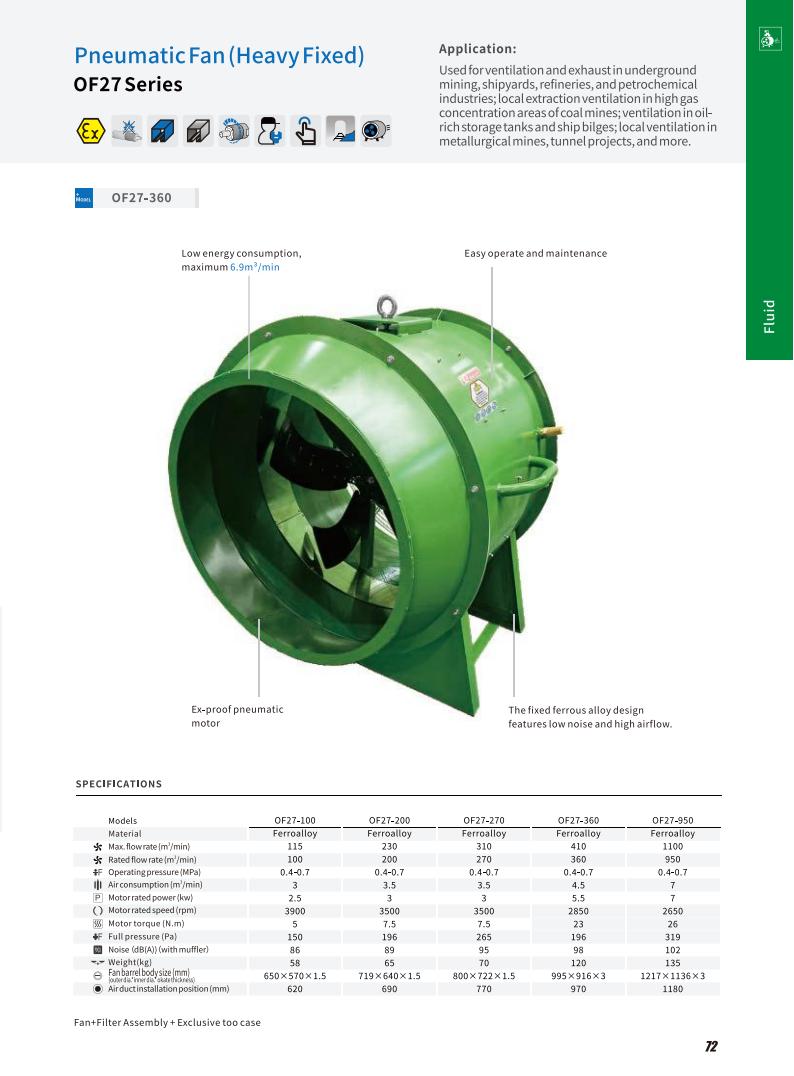

OF27-270 Pneumatic Fan Fixed Type

Used for ventilation and exhaust in underground mining, shipyards, refineries, and the petrochemical industry; for exhaust-type local ventilation in coal mines with high gas concentrations; for air exchange in oil depots and ship holds with high oil and gas content; and for local ventilation in metallurgy, mining, and tunnel engineering.

Features

Low energy consumption, maximum air usage 6.9 m³/min
High explosion-proof pneumatic motor, ideal for flammable and explosive environments
Fixed ferroalloy design with low noise and large airflow
Simple operation and easy maintenance

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Material	Max. flow rate	Rated flow rate	Working pressure	Air consumption	Rated power	Rated speed	Motor torque	Total pressure	Noise level	Weight	Meas. ODIDWidth	Duct installation space
Model		m³/min	m³/min	Mpa	m³/min	kW	rpm	N.m	Pa	dB(A)	kg	mm	mm
OF27-100	Ferrous Alloy	115	100	0.4-0.7	3.0	2.5	3900	5.0	150	86	58	6505701.5	620
OF27-200	Ferrous Alloy	230	200	0.4-0.7	3.5	3.0	3500	7.5	196	89	65	7196401.5	690
OF27-270	Ferrous Alloy	310	270	0.4-0.7	3.5	3.0	3500	7.5	265	95	70	8007221.5	770
OF27-360	Ferrous Alloy	410	360	0.4-0.7	4.5	5.5	2850	23	196	98	120	9959163	970
OF27-950	Ferrous Alloy	1100	950	0.4-0.7	7.0	7.0	2650	26	319	102	135	121711363	1180
