Home> Products> Drilling Tools> Hammer Drill

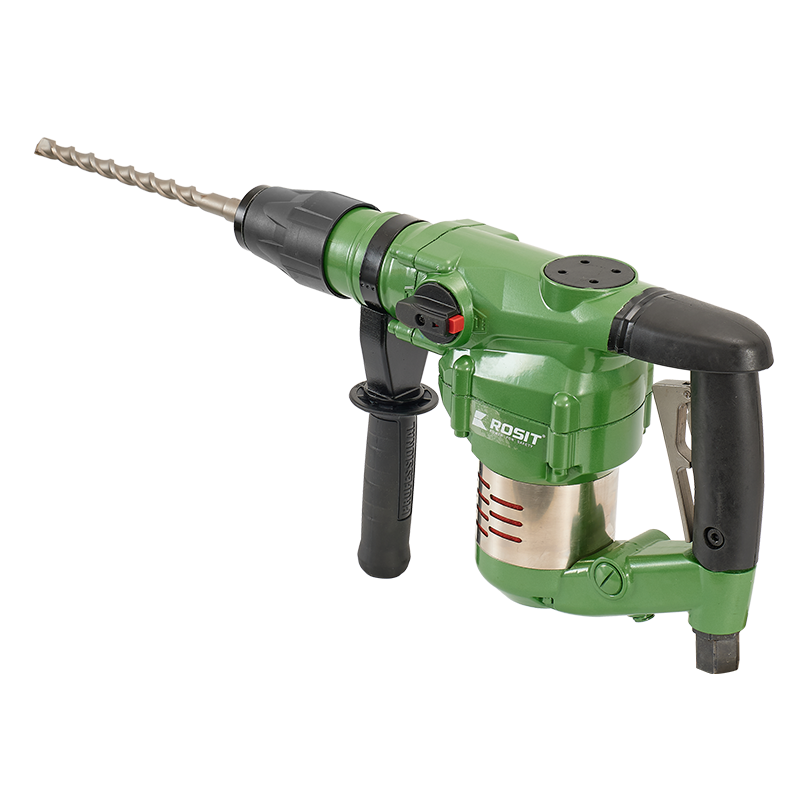

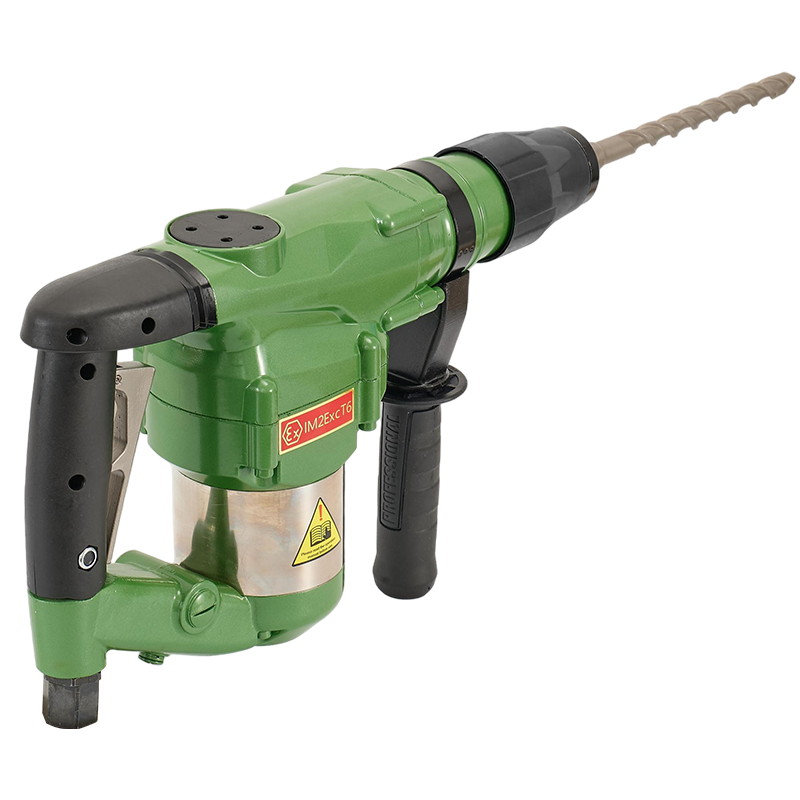

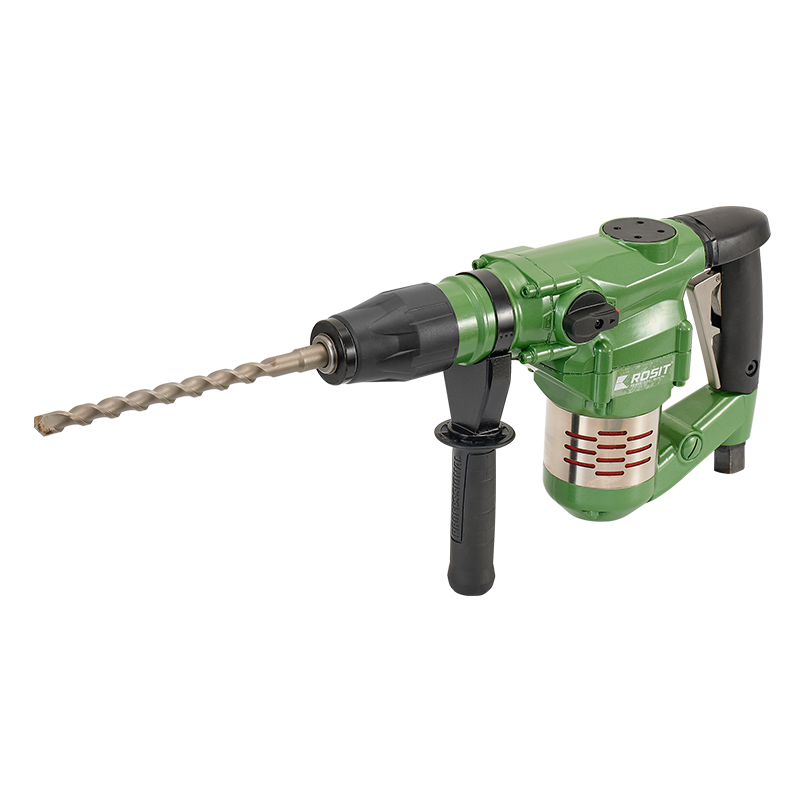

DH21-040 Pneumatic Hammer Drill

Used for drilling holes in concrete, rock, and masonry in hazardous environments, for installing cables, pipes, and expansion anchors.

Features

AVT anti-vibration system reduces vibration and misalignment
Pneumatic motor suitable for hazardous environments
Three operation modes: impact, drilling, and hammering
Durable aluminum alloy body for portability and efficiency
Various drill bits available based on task requirements
Dust-proof cooling water injection system for cooling and dust prevention

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Max. Drilling capacity	Drill bit interface	Power	No load speed	Percussion under load	Working pressure	Air consumption	Air inlet	Function	Noise level	Vibration level	Weight
Model	mm		kW	rpm		Mpa	m³/min	mm		dB(A)	m/s²	kg
DH21-016	20	SDS-plus	1.0	900	5300	0.4-0.6	1.0	13	Impact drill+drill+hammer	﹤90	﹤5.0	4.5
DH21-026	26	Square	0.7	720	4350	0.4-0.6	0.7	13	Impact drill+hammer	﹤93	﹤5.0	6.0
DH21-030	30	Square	0.8	620	3500	0.4-0.6	0.8	13	Impact drill+drill+hammer	﹤93	﹤9.0	6.8
DH21-040	40	SDS-Max	1.5	460	3000	0.5-0.7	1.5	13	Impact drill+hammer	﹤90	﹤9.0	7.5
DH21-050	50	SDS-Max	1.5	250	2500	0.5-0.7	1.5	13	Impact drill	﹤91	﹤9.2	13
