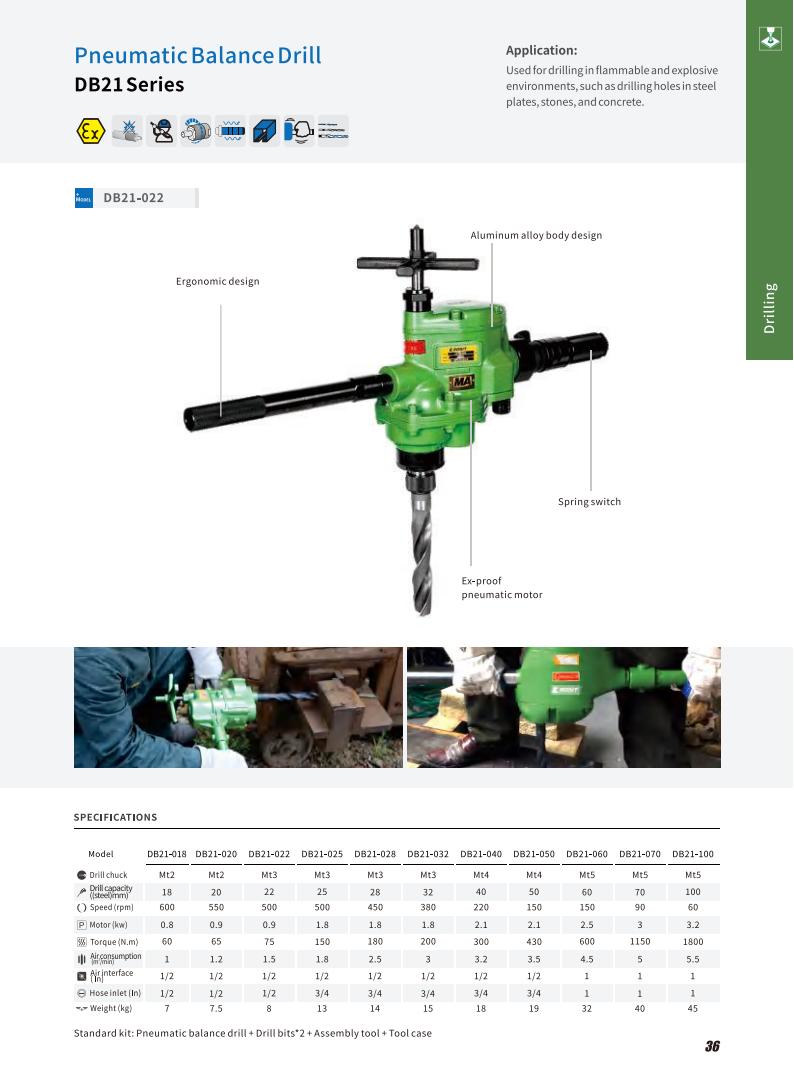

DB21-020 Pneumatic Heavy Duty Rotary Drill

Ideal for drilling holes in steel plates, stone, and concrete in flammable and explosive environments.

Features

High explosion-proof performance of the pneumatic motor
Spring switch ensures operational safety
Durable aluminum alloy body design
Two-hand operation design enhances work comfort

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Drill chuck	Drill capacity	Load speed	Motor output	Torque	Air consumption	Air inlet	Hose inlet	Weight
Model		mm	rpm	kW	N.m	m³/min	In	In	kg
DB21-018	Mt2	18	600	0.8	60	1.0	1/2	1/2	7.0
DB21-020	Mt2	20	550	0.9	65	1.2	1/2	1/2	7.5
DB21-022	Mt3	22	500	0.9	75	1.5	1/2	1/2	8.0
DB21-025	Mt3	25	500	1.8	150	1.8	1/2	3/4	13
DB21-028	Mt3	28	450	1.8	180	2.5	1/2	3/4	14
DB21-032	Mt3	32	380	1.8	200	3.0	1/2	3/4	15
DB21-040	Mt4	40	220	2.1	300	32	1/2	3/4	18
DB21-050	Mt4	50	150	2.1	430	3.5	1/2	3/4	19
DB21-060	Mt5	60	150	2.5	600	4.5	1	1	32
DB21-070	Mt5	70	90	3.0	1150	5.0	1	1	40
DB21-100	Mt5	100	60	3.2	1800	5.5	1	1	45
