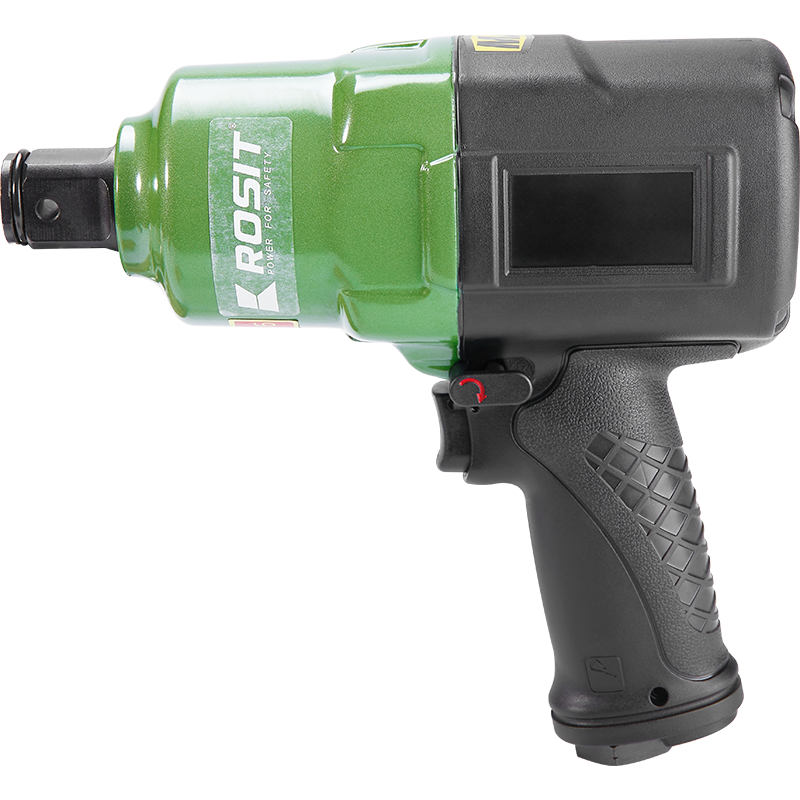

AW22-2000 Pneumatic Impact Wrench (Ultra-Light Series)

Ultra-lightweight design for tightening and loosening bolts and nuts, also suitable for installing and removing anchor rod nuts.

Features

Twin hammer cylinder design delivers up to 8000 N·m torque while weighing 1/3 less than similar torque wrenches
Durable aluminum alloy housing, with the lightest model in the series weighing only 2kg
Pneumatic motor suitable for flammable and explosive environments
Stepless speed control for precise operation
Compatible with various socket sizes as needed
Long service life with a 1-year warranty

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Bolt size	Torque range	Drive size	Speed	Air consumption	Air inelt	Working pressure	Impact shaft length	Weight
Model	mm	N.m	In	rpm	m³/min	In	Mpa	In	kg
AW22-750	M20	300-750	1/2	11000	0.3	1/4	0.4-0.6	1.0	1.2
AW22-1200	M27	400-1200	3/4	8500	0.4	3/8	0.4-0.6	1.0	2.5
AW22-2000	M30	800-2000	1	5500	0.55	1/2	0.4-0.6	1.5	3.7
AW22-3000	M36	800-3000	1	5000	0.6	1/2	0.4-0.6	6.0	6.0
AW22-3500	M38	1500-3500	1	5000	0.7	1/2	0.4-0.6	6.0	10
AW22-4000	M42	1600-4000	1	4000	1.5	1/2	0.4-0.6	1.0	12
AW22-6000	M48	1800-6000	1-1/2	3500	2.0	1/2	0.4-0.6	1.0	15
AW22-8000	M52	2000-8000	1-1/2	2800	2.4	1/2	0.4-0.6	1.0	16
