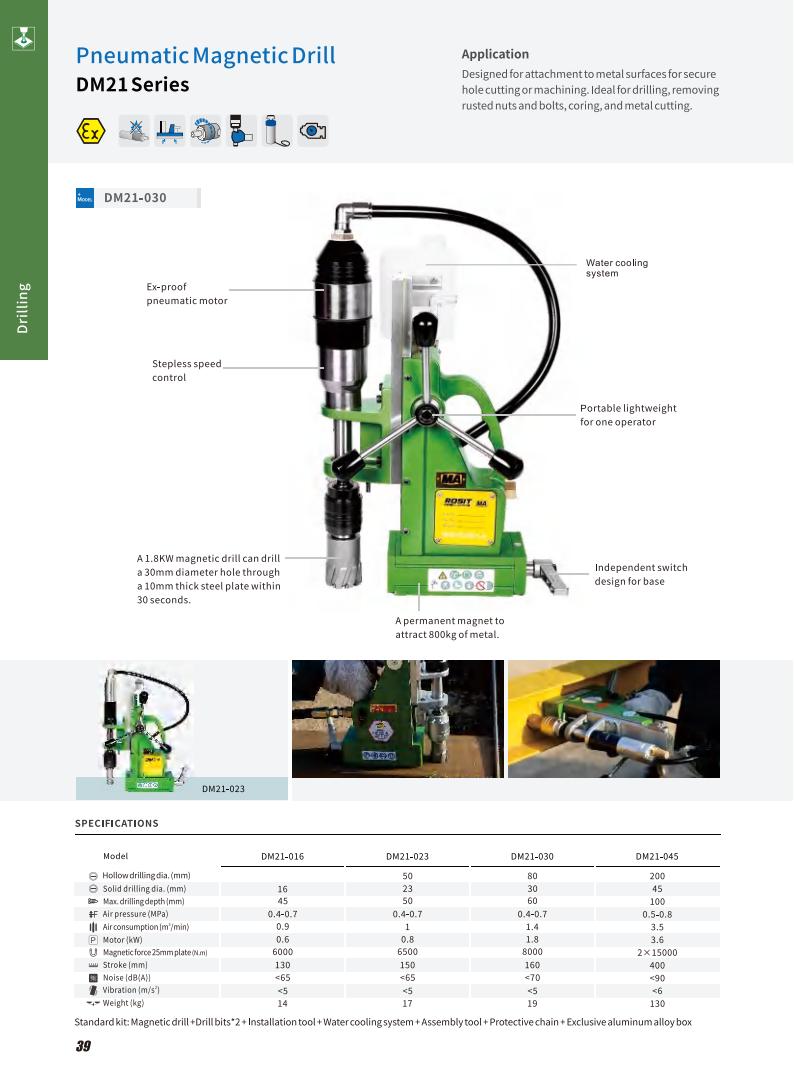

DM21-016 Pneumatic Magnetic Drill

Used for attaching to metal surfaces to fix holes or perform cutting, specifically for hole drilling, removing rusted nuts and bolts, core sampling, and cutting metals.

Features

1.8KW magnetic drill drills a 30mm hole in 10mm thick steel in 30 seconds.
Permanent magnet can attract up to 800kg of metal
Independent base switch design prevents air disconnection and detachment
Pneumatic motor with high explosion-proof performance
Stepless speed regulation
Equipped with a water cooling system
Can be operated by a single person

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Max. Hollow drill dia.	Max. spiral drill dia.	Max. drilling depth	Working pressure	Air consumption	Power	Mag. force	Stroke	Noise level	Vibration level	Weight
Model	mm	mm	mm	Mpa	m³/min	kW	N	mm	dB(A)	m/s²	kg
DM21-016	/	16	45	0.4-0.7	0.9	0.6	6000	130	﹤65	﹤5	14
DM21-023	50	23	50	0.4-0.7	1.0	0.8	6500	150	﹤65	﹤5	17
DM21-030	80	30	60	0.4-0.7	1.4	1.8	8000	160	﹤70	﹤5	19
DM21-045	200	45	100	0.5-0.8	3.5	3.6	2*15000	400	﹤90	﹤6	130
