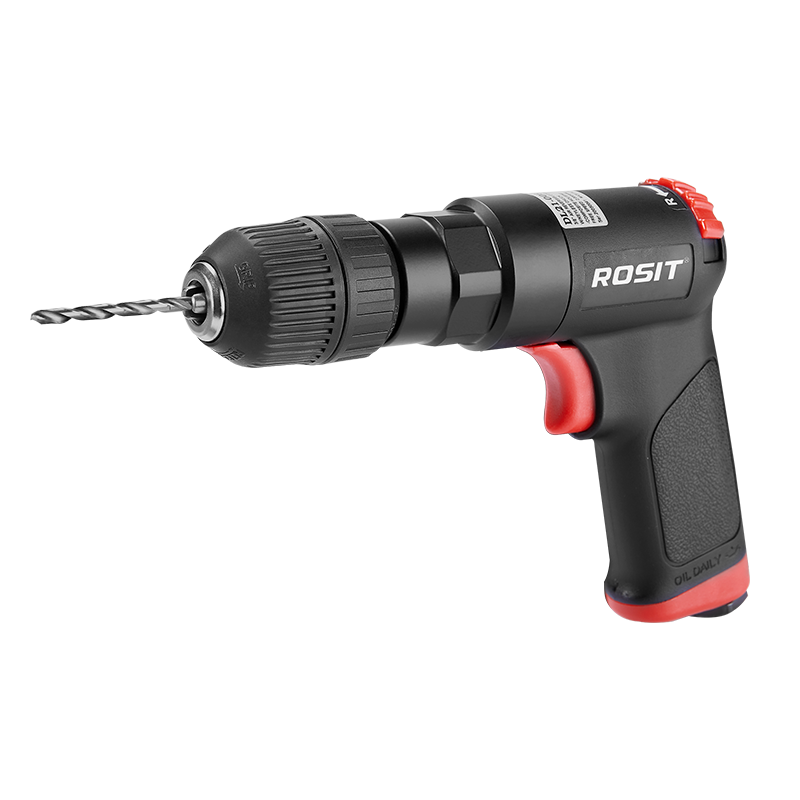

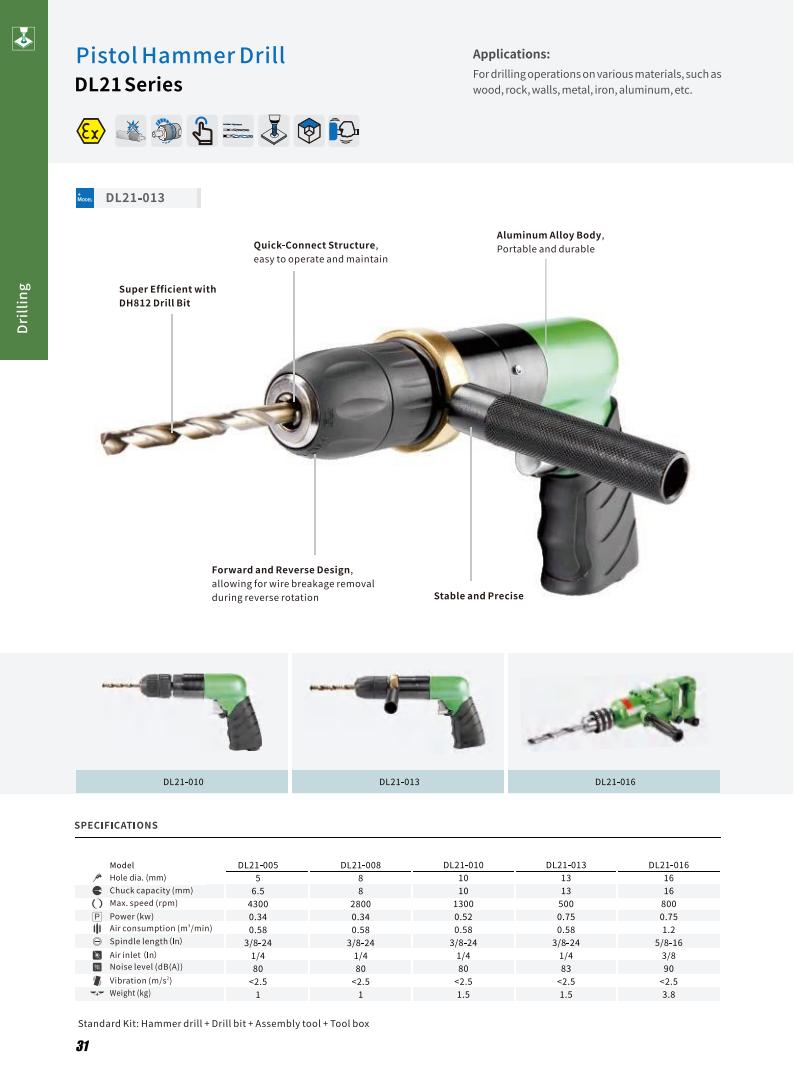

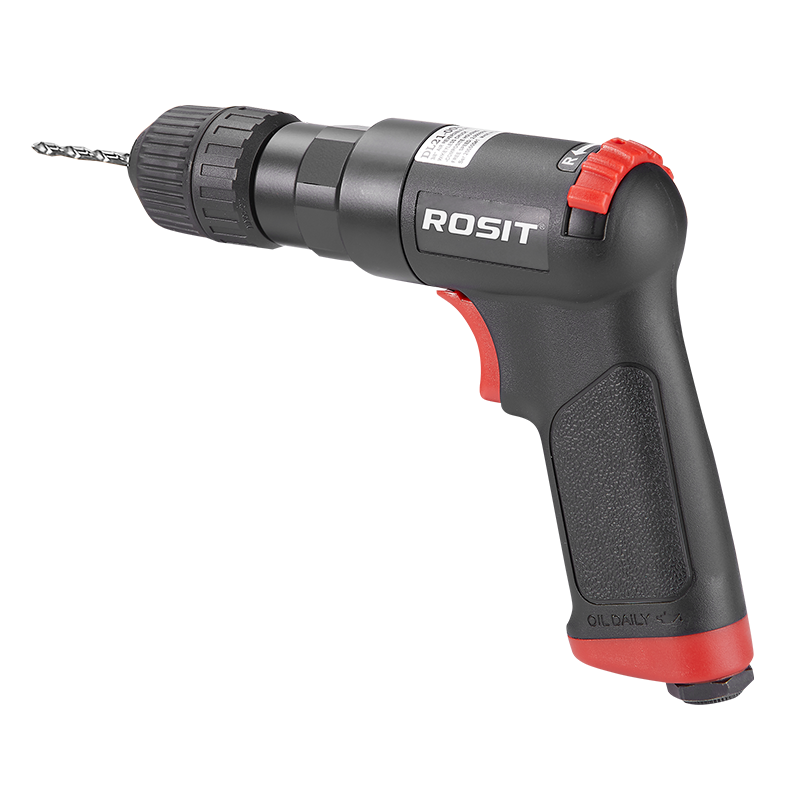

DL21-005 Pneumatic Pistol Hammer Drill

For drilling operations on various materials, such as wood, rock, walls, metal, iron, aluminum, etc.

Features

Quick-connect structure for easy operation and maintenance
Lightweight and durable aluminum alloy body
Forward and reverse design, allowing for wire removal during reverse rotation
Compatible with DH821 series alloy twist drill bits for efficient hole-making
Smooth and precise operation

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Drilling capacity	Chuck capacity	Power	Max. speed	Air consumption	Spindle size	Air inlet	Noise level	Vibration level	Weight
Model	mm	mm	kW	rpm	m³/min	In	In	dB(A)	m/s²	kg
DL21-005	5	6.5	0.34	4300	0.58	3/8-24	3/8	80	﹤2.5	1.0
DL21-008	8	8	0.34	2800	0.58	3/8-24	3/8	80	﹤2.5	1.0
DL21-010	10	10	0.52	1300	0.58	3/8-24	3/8	80	﹤2.5	1.5
DL21-013	13	13	0.75	500	0.58	3/8-24	1/4	83	﹤2.5	1.5
DL21-016	16	16	0.75	250	1.2	5/8-16	3/8	90	﹤2.5	3.8
