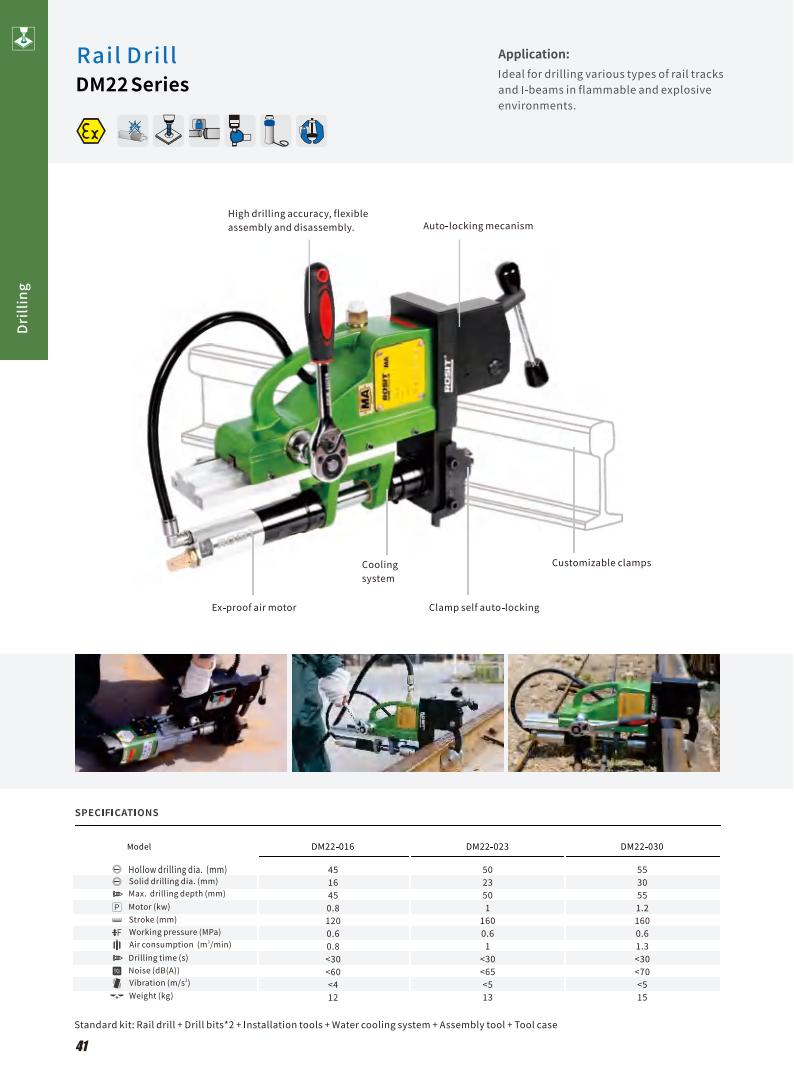

DM22-023 Pneumatic Rail Drill

Ideal for drilling various types of rail tracks and I-beams in flammable and explosive environments.

Features

High drilling precision and easy to install and remove
Rail clamp equipped with a self-locking mechanism
Explosion-proof pneumatic motor
Equipped with automatic water-cooling system
Clamping device offers secure locking and accurate center positioning
Customizable clamps available upon request.
Fast drilling speed with high accuracy

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Max. Hollow drill dia.	Max. spiral drill dia.	Max. drilling depth	Working pressure	Air consumption	Power	Drilling times	Stroke	Noise level	Vibration level	Weight
Model	mm	mm	mm	Mpa	m³/min	kW	s	mm	dB(A)	m/s²	kg
DM22-016	45	16	45	0.6	0.8	0.8	﹤30	120	﹤60	﹤4	12
DM22-023	50	23	50	0.6	1.0	1.0	﹤30	160	﹤65	﹤5	13
DM22-030	55	30	55	0.6	1.3	1.2	﹤30	160	﹤70	﹤5	15
