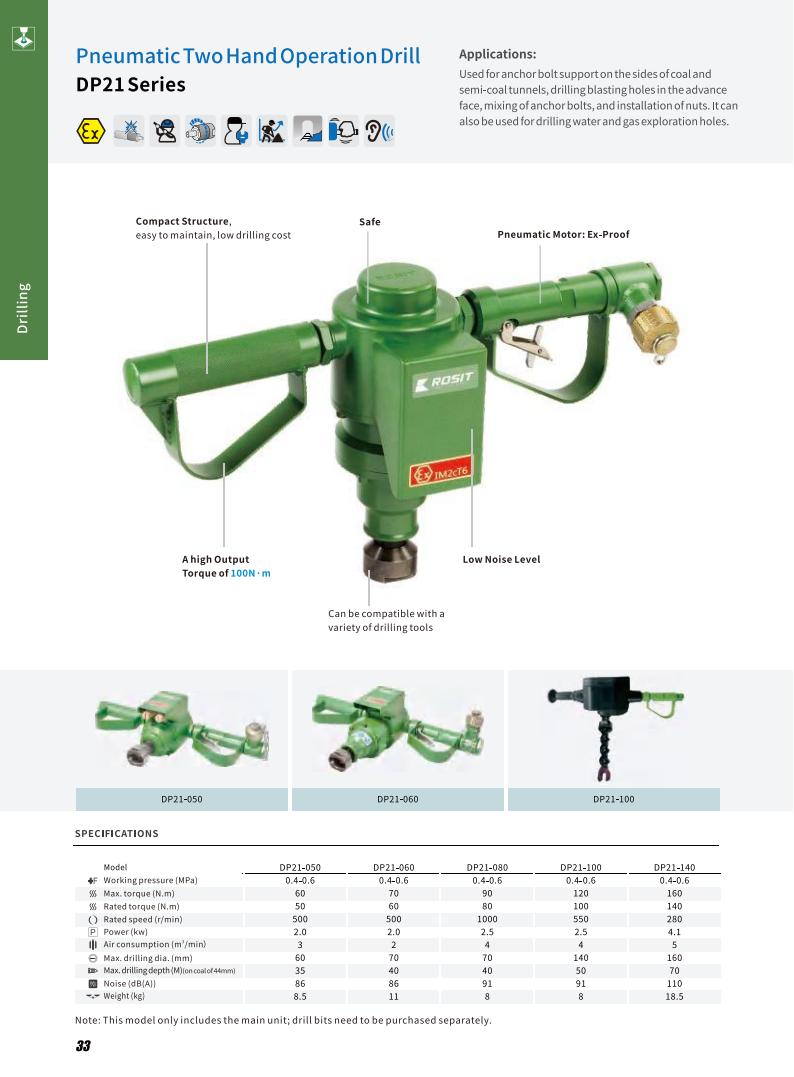

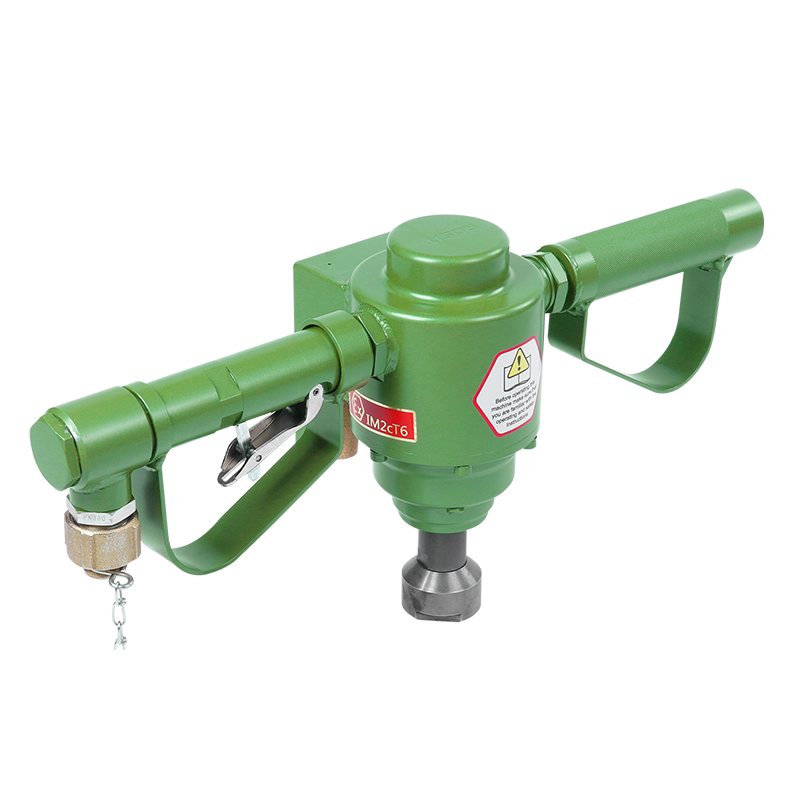

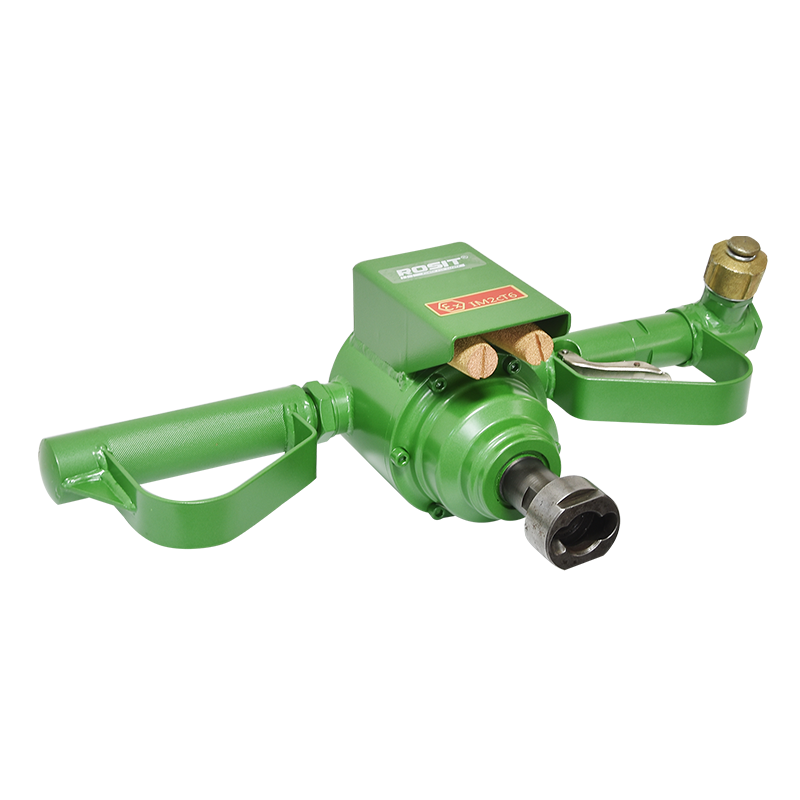

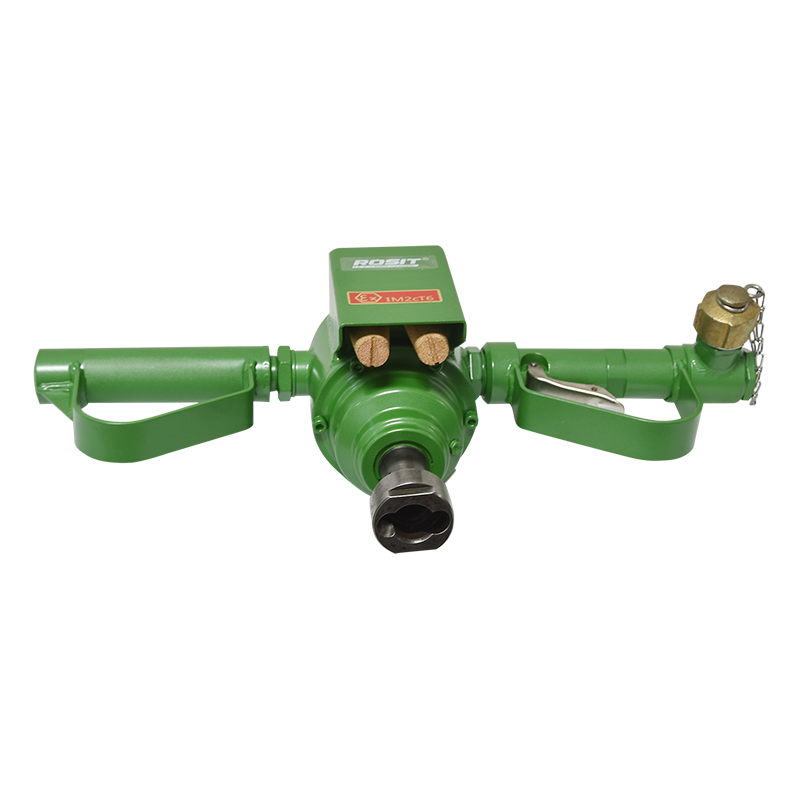

DP21-050 Pneumatic Two-Hand Operation Drill

Used for anchor bolt support on the sides of coal and semi-coal tunnels, drilling blasting holes in the advance face, mixing of anchor bolts, and installation of nuts. Lt can also be used for drilling water and gas exploration holes

Features

Main unit weighs around 8kg but delivers a high torque of 100N.m
Pneumatic motor for safety, preventing electric leakage hazards
Compact structure for easy maintenance and low feed cost
Low noise, significantly improving underground work environment
Ideal drill machine to replace coal electric drills
Compatible with various drilling tools

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Working pressure	Max. torque	Rated torque	Rated speed	Power	Air consumption	Max. drilling dia.	Max. drilling dia.	Noise level	Weight
Model	Mpa	N.m	N.m	rpm	kW	m³/min	mm	mm	dB(A)	kg
DP21-050	0.4-0.6	60	50	500	2.0	3.0	60	35	80	1.0
DP21-060	0.4-0.6	70	60	500	2.0	2.0	70	40	80	1.0
DP21-080	0.4-0.6	90	80	1000	2.5	4.0	70	40	80	1.5
DP21-100	0.4-0.6	120	100	550	2.5	4.0	140	50	83	1.5
DP21-140	0.4-0.6	160	140	280	4.1	5.0	160	70	90	3.8
