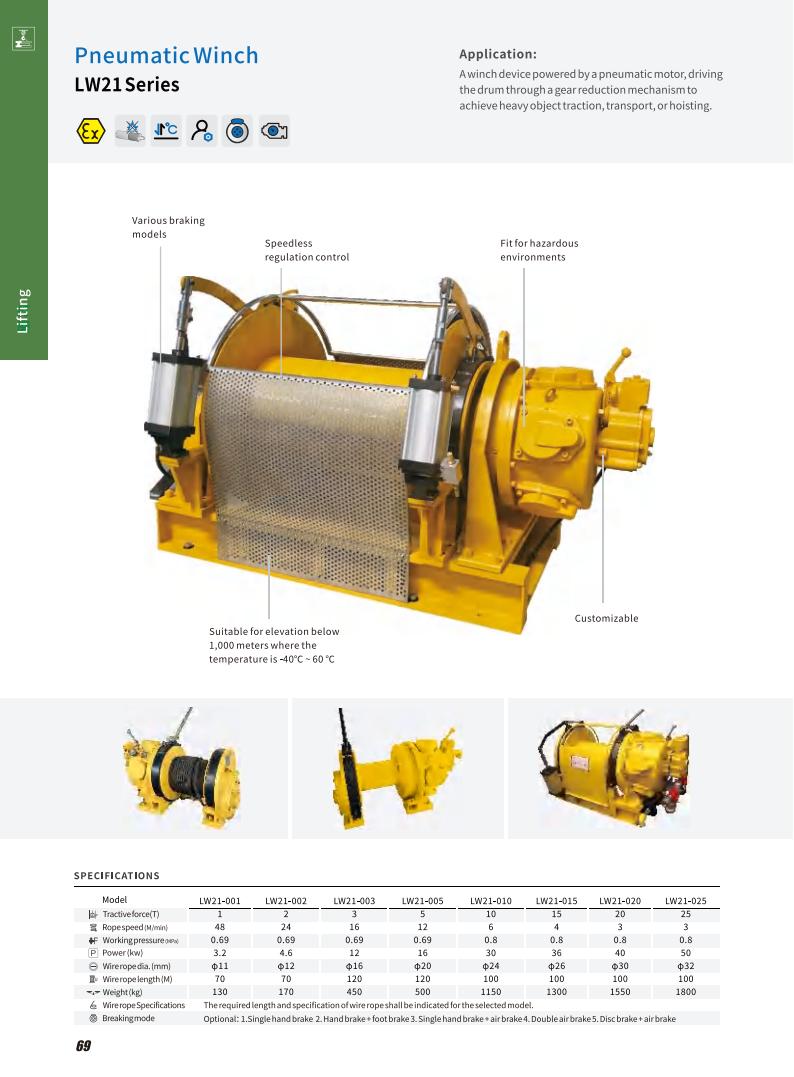

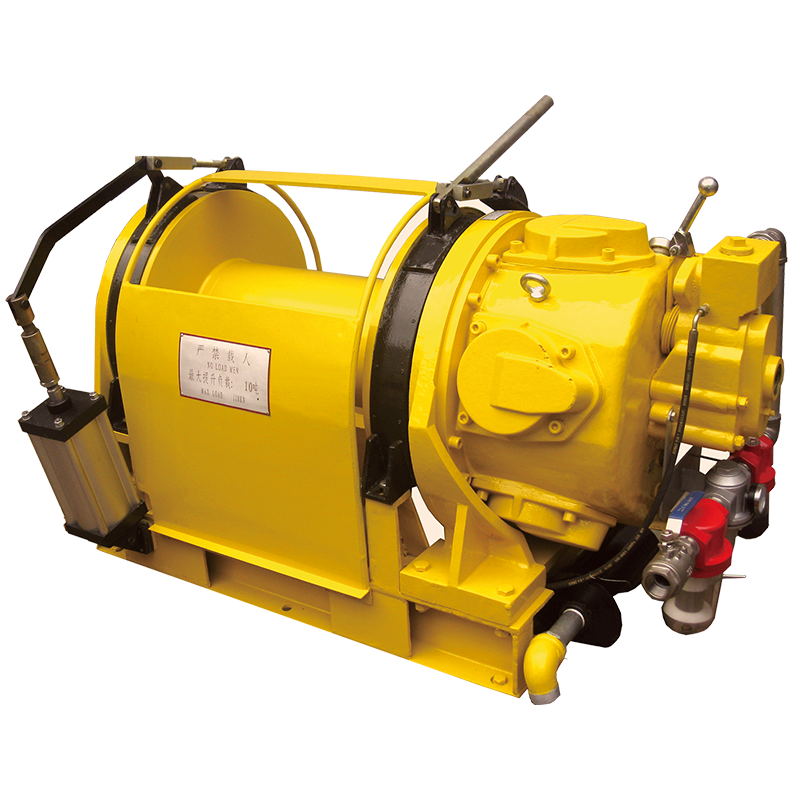

LW21-003 Pneumatic Winch

Powered by a pneumatic motor, the winch uses a gear reduction mechanism to drive the drum, enabling the pulling, transporting, or hauling of heavy loads.

Features

Multiple braking systems available and combinable
Smooth operation with stepless speed regulation
Suitable for flammable and explosive environments
Designed for environments below 1000 meters altitude and temperatures ranging from -40°C to 60°C
Customizable based on customer requirements
Optional braking mode: 1. Single hand brake 2. hand brake + foot brake 3. Single hand brake + air brake 4. Double air brake 5. Disc brake + air brake

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Pulling force	Rope speed	Air pressure	Power	Wire rope dia.	Wire rope length	Weight
Model	T	m/min	Mpa	kW	mm	mm	kg
LW21-001	1	48	0.69	3.2	Φ11	70	130
LW21-002	2	24	0.69	4.6	Φ12	70	170
LW21-003	3	16	0.69	12	Φ16	120	450
LW21-005	5	12	0.69	16	Φ20	120	500
LW21-010	10	6	0.80	30	Φ24	100	1150
LW21-015	15	4	0.80	36	Φ26	100	1300
LW21-020	20	3	0.80	40	Φ30	100	1550
LW21-025	25	3	0.80	50	Φ32	100	1800
