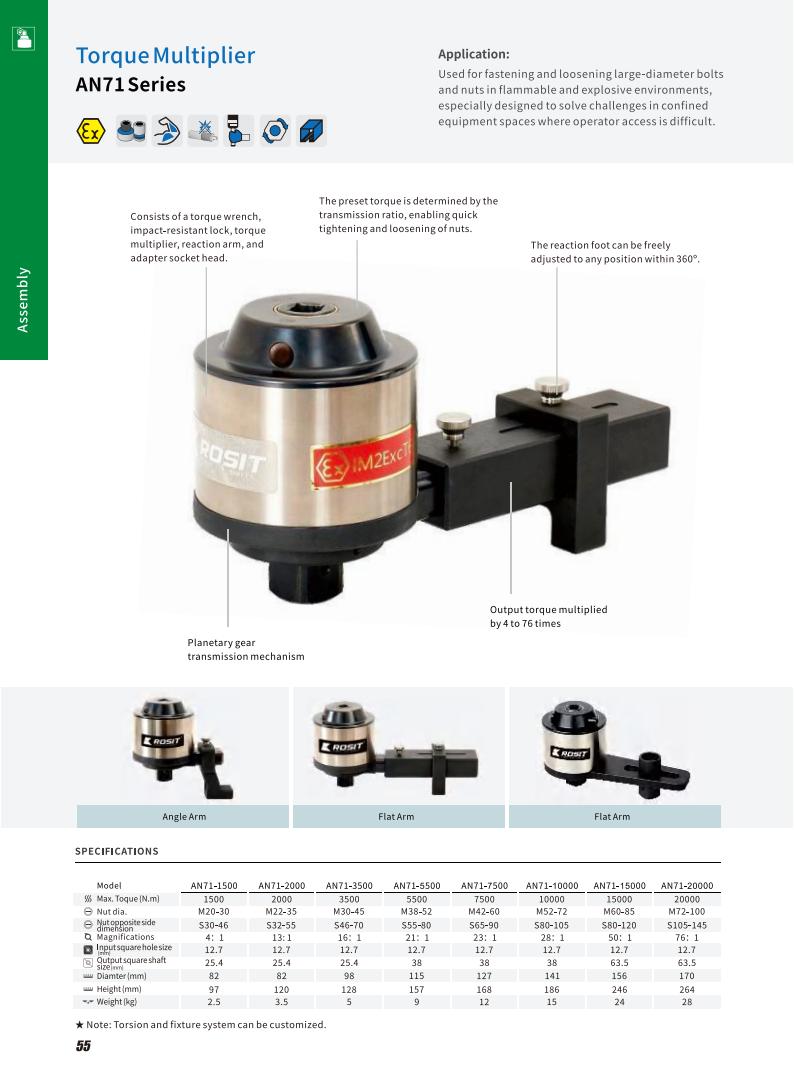

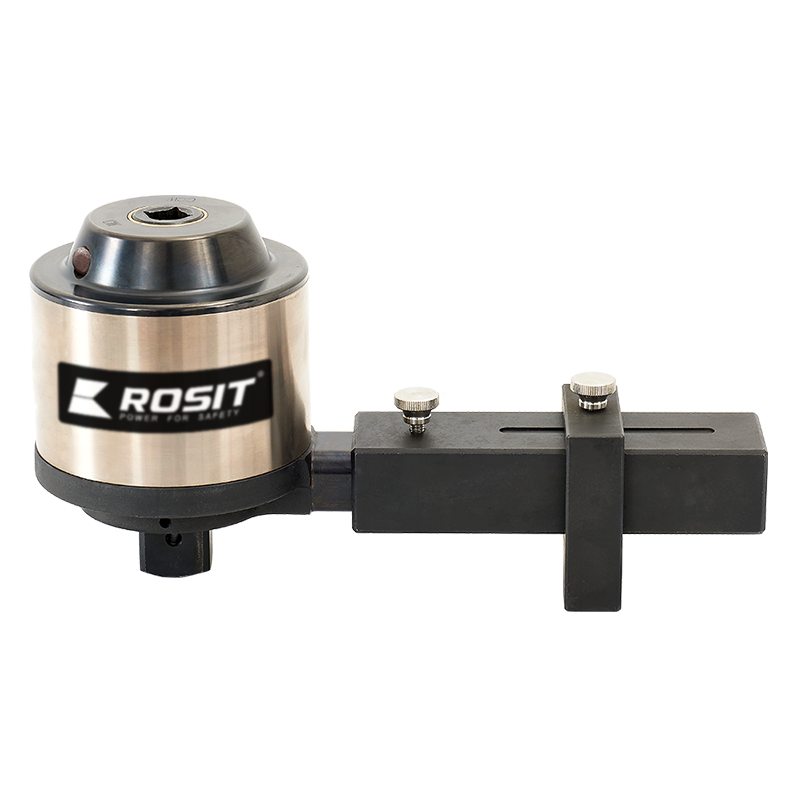

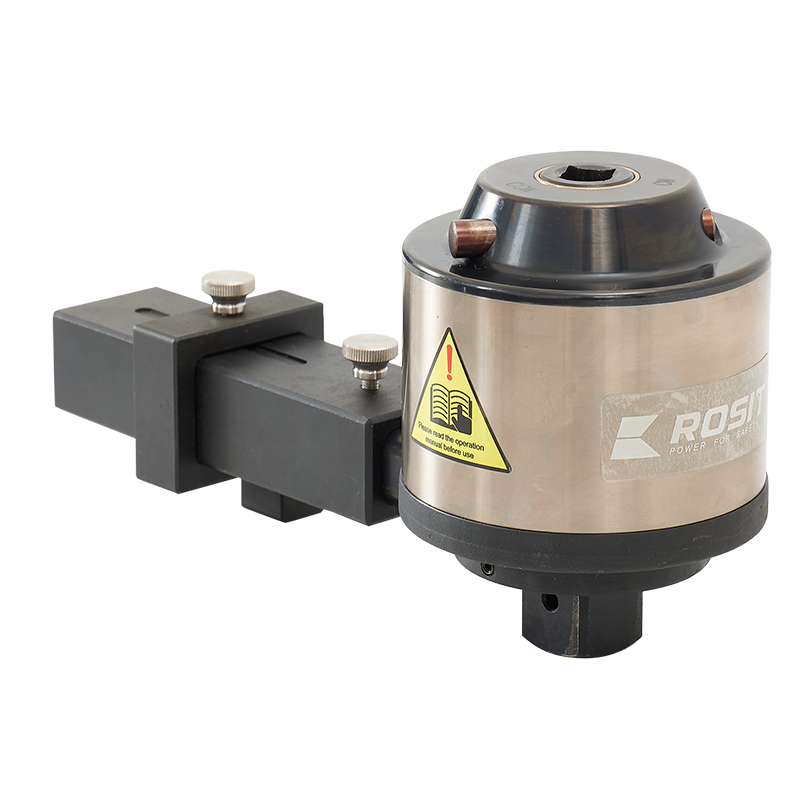

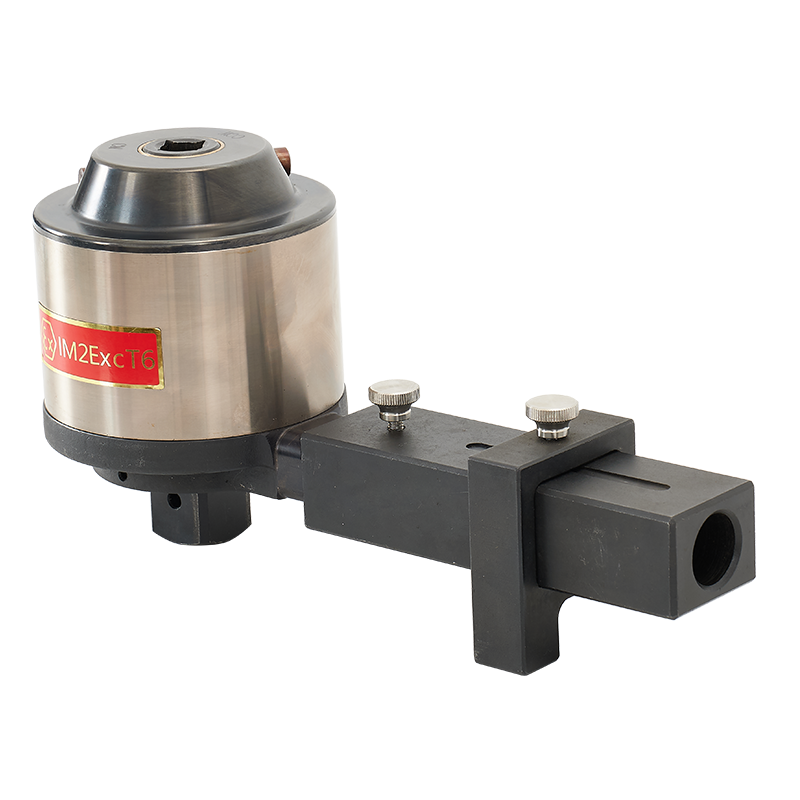

AN71-2000 Torque Multiplier

Ideal for fastening and loosening large-diameter bolts and nuts in flammable and explosive environments, especially designed to solve challenges in confined equipment spaces where operator access is difficult.

Features

Torque preset according to transmission ratio enables quick fastening and loosening of nuts
Reaction feet can be rotated 360° to any position
Features an efficient planetary gear transmission with high torque output
Provides 4 to 76 times output torque
Consists of a torque wrench, anti-lock device, torque multiplier, reaction arm, and adapter socket

REQUEST A QUOTE REQUEST A DEMO

Product Information

MODEL SPECIFICATION
DOWNLOADS
Accessories

COMPARE MODELS

Compare

Model	Max. torque	Bolt Size Range	Applicable AF Size	Magnification	Input Square Drive	Output Square Drive	Dia.	Height	Weight
Model	N.m				mm	mm	mm	mm	kg
AN71-1500	1500	M20-30	S30-46	4:1	12.7	25.4	82	97	2.5
AN71-2000	2000	M22-35	S32-55	13:1	12.7	25.4	82	120	3.5
AN71-3500	3500	M30-45	S46-70	16:1	12.7	25.4	98	128	5.0
AN71-5500	5500	M38-52	S55-80	21:1	12.7	38	115	157	9.0
AN71-7500	7500	M42-60	S65-90	23:1	12.7	38	127	168	12
AN71-10000	10000	M52-72	S80-105	28:1	12.7	38	141	186	15
AN71-15000	15000	M60-85	S80-120	50:1	12.7	63.5	156	246	24
AN71-20000	20000	M72-100	S105-145	76:1	12.7	63.5	170	264	28
